Product overview

Product overview 1:

The areas, functions and slots shown in the figure may vary depending on the module version and are provided here for clarity.

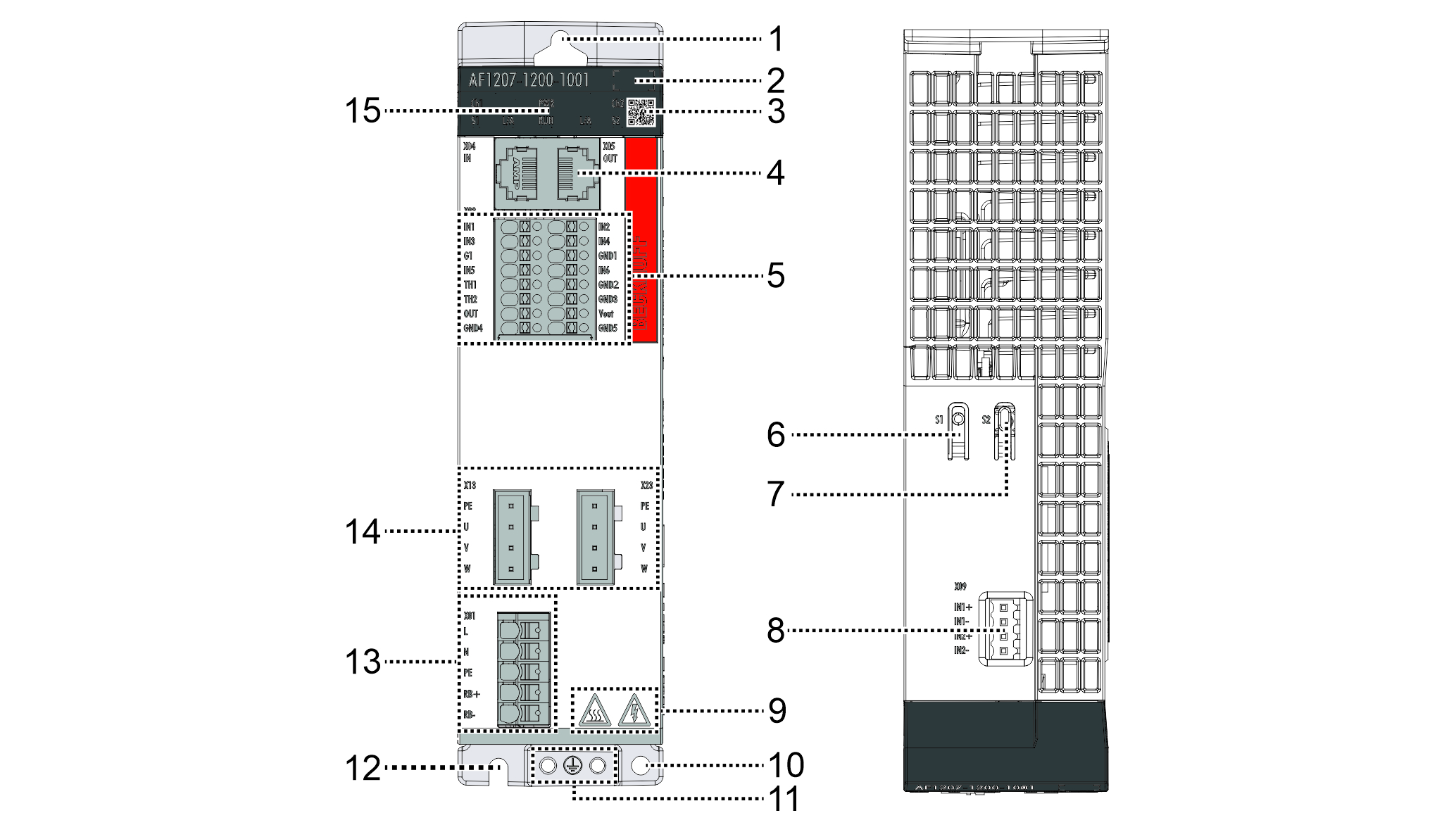

Product overview 2:

Position

Name

Explanation

1

Mounting hole

For mounting the variable frequency drive in the control cabinet

2

Position field

for equipment identification

3

DataMatrix code

contains BTN for identification, for further information see name plate

4

EtherCAT slot

For connecting the EtherCAT connector to IN X4/OUT X5

5

I/O connection

For connecting the I/O signals to X02 and
X03 X07

Use of internal field voltage 24 V

6

Push button S1

for internal purposes

7

Push button S2

TwinSAFE actuation button

8

TwinSAFE I/O slot

For connecting the TwinSAFE plug to X09

9

Safety pictograms

for further information, see For your safety

10

Mounting hole

For mounting the optional footprint filter to the economy variable frequency drive

11

Grounding

Grounding symbol and double connection point with pre-assembled grounding screws for connecting the protective conductor

12

Mounting hole

For mounting the variable frequency drive in the control cabinet

13

Network connection

For connecting the mains supply to X01

14

Motor slot

For connecting the motor connector to X13/X23

15

Display

Display for function and status display, see Display
