I/O connection | X02

I/O connection | X02 1:

Observe the conditions for wiring the 1-channel modules from the chapter Wiring X02 (1-channel)



Valid for:

Digital I/Os on X02 connection strip

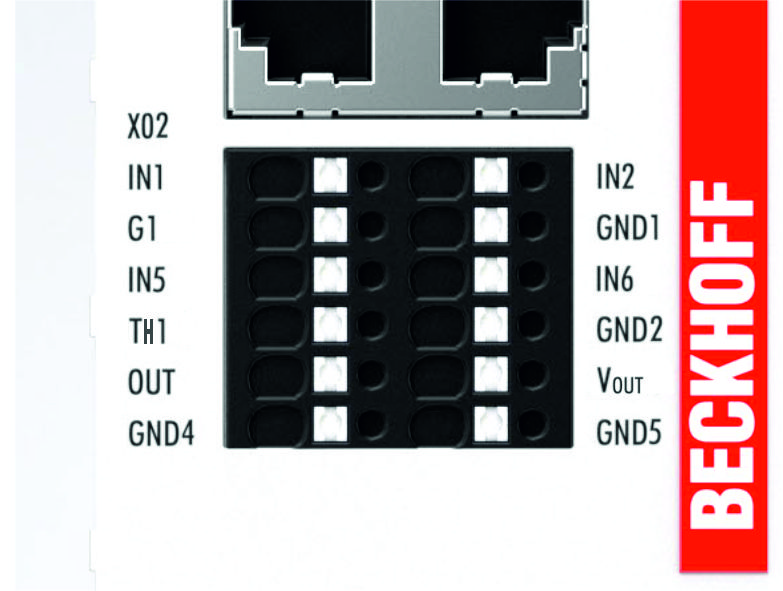

I/O connection | X02 2:

Feature

Implementation

Connection type

Connection strip

Contact type

Direct plug-in technique

Number of contacts

12-pin

Connectable conductors at this connection

Technical parameter

Unit

min.

max.

Clamping range

mm²

0.2

1.5

Conductor connection cross-section AWG

AWG

26

16

solid wire H05(07) V-U

mm²

0.2

1.5

stranded wire H05(07) V-U

mm²

0.2

1.5

with AEH with collar DIN46 228/4

mm²

0.2

0.75

with wire end sleeve DIN46 228/1

mm²

0.2

1.5

Contact assignment at this connection

Terminal point

Function

Reference potential

Input filter/switching times

IN1

Digital input 1, type 3

G1

2 ms

IN2

Digital input 2, type 3

G1

2 ms

G1

Reference potential for input 1 and 2

G1



GND1

Reference potential of the 24 V DC supply voltage Vout

FGND



IN5

Digital input 5, type 3

FGND

2 ms

IN6

Digital input 6, type 3

FGND

2 ms

TH1

Input temperature sensor 1

FGND



GND2

Reference potential temperature sensor 1

FGND



OUT

Digital output

FGND

ton = 100 μs
toff = 150 μs

Vout

Output 24 V DC supply voltage

FGND



GND4

Reference potential of the 24 V DC supply voltage Vout

FGND



GND5

Reference potential of the 24 V DC supply voltage Vout

FGND
