Motor slot | X13



Valid for:

Motor connection for channel 1 to connection X13

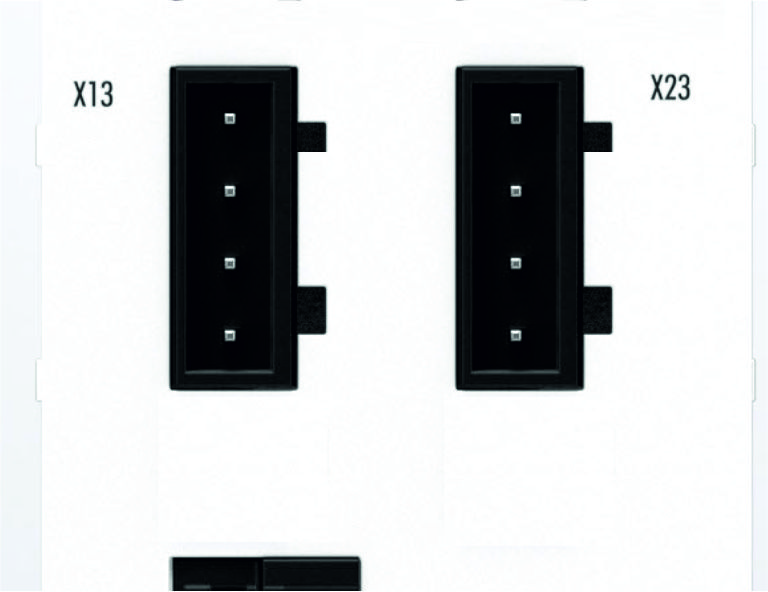

Motor slot | X13 1:

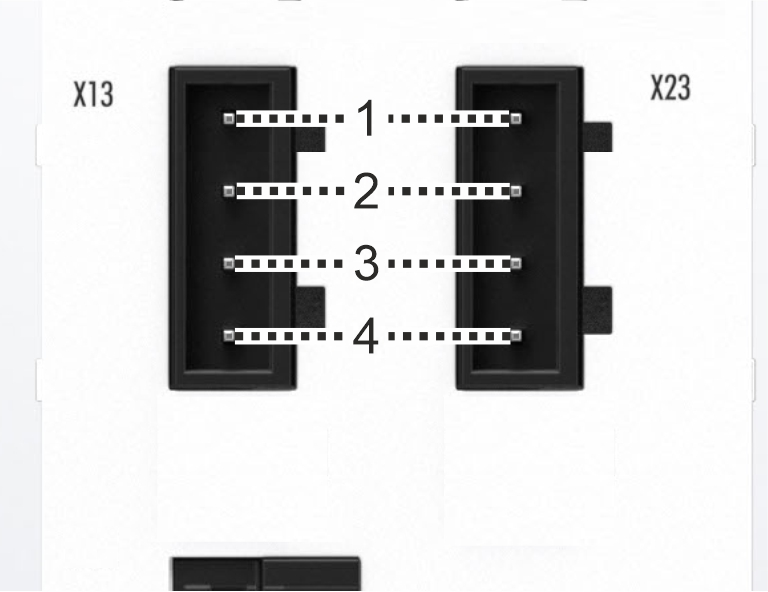

Motor slot | X13 2:

Feature

Implementation

Connection type

Socket, 4-pin

Connector

Accessory component, not included in scope of delivery

Contact type of the connector

Direct plug-in technique

Connectors for devices with an AF1xxx-1xxx single-phase supply

Order information
ZS4100-1013 (PU 1 pc.)
ZS4100-1113 (PU 10 pcs.)

Connectors for devices with an AF1xxx-3xxx three-phase supply

Order information
ZS4100-3013 (PU 1 pc.)
ZS4100-3113 (PU 10 pcs.)

Contact assignment at this connection

Position

Terminal point

Connection

1

PE

Protective conductor, PE

2

U

Phase U

3

V

Phase V

4

W

Phase W





Accessories | Connectors for the motor connectors

The connector for the motor socket is not included in the scope of delivery. Order information can be found in the following tables.

Single-phase devices

PU
[pieces]

Ordering information

Hybrid 4-pin motor connector for AF1000 single-phase devices, socket X13/X23, wire cross-section max. 2.5 mm²

1

ZS4100-1013

10

ZS4100-1113

Three-phase devices

PU
[pieces]

Ordering information

Hybrid 4-pin motor connector for AF1000 three-phase devices, socket X13/X23, wire cross-section max. 2.5 mm²

1

ZS4100-3013

10

ZS4100-3113

Connectable conductors for this connection

Technical parameter

Unit

min.

max.

Clamping range

mm²

0.08

2.5

Conductor connection cross-section AWG

AWG

20

12

solid wire H05(07) V-U

mm²

0.5

1.5

stranded wire H05(07) V-U

mm²

0.5

2.5

with AEH with collar DIN46 228/4

mm²

0.5

2.5

with wire end sleeve DIN46 228/1

mm²

0.5

2.5

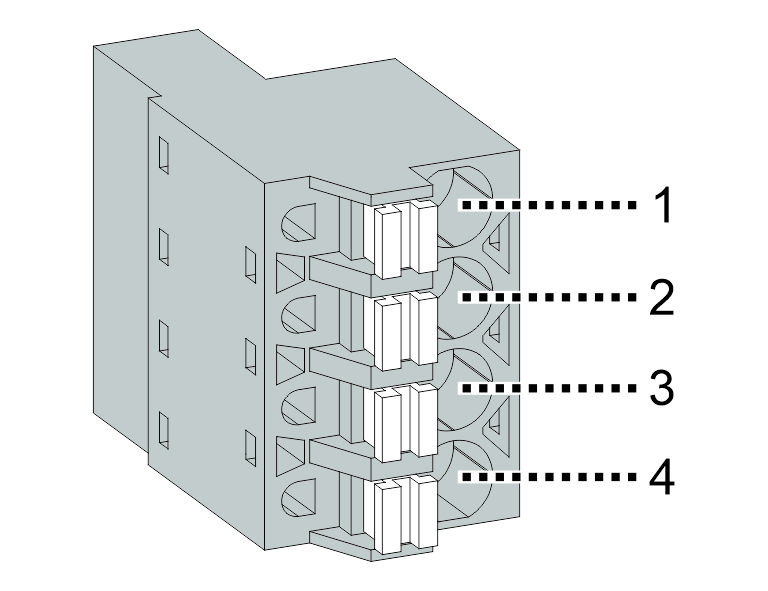

Motor slot | X13 3:

Contact assignment at this connection

Position

Terminal point

Connection

1

PE

Protective conductor, PE

2

U

Phase U

3

V

Phase V

4

W

Phase W
