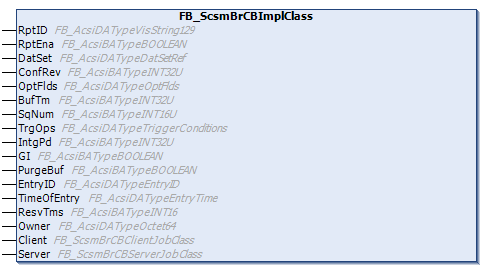

FB_ScsmBrCBImplClass

The function block FB_ScsmBrCBImplClass contains the client and server implementation of the properties and functions of a BRCB control block. For each configured GOOSE control block an instance of FB_GseBrCBImplClass is created by the TwinCAT Telecontrol Configurator.

Namespace: Tc3_iec61850_8_1
Library: Tc3_iec61850_8_1 (Tc3_iec61850_8_1.compiled-library)

Inheritance hierarchy

FB_AcsiCommonNodeClass -> FB_AcsiCommonDataClass -> FB_AcsiCommonControlBlockClass -> FB_AcsiCommonBufferedReportControlBlockClass -> FB_AcsiBufferedReportControlBlock -> FB_ScsmBrCBImplClass

FUNCTION_BLOCK FB_ScsmBrCBImplClass EXTENDS FB_AcsiBufferedReportControlBlock IMPLEMENTS I_ScsmBrCBImplClass
VAR_INPUT
    Client : FB_ScsmBrCBClientJobClass;
    Server : FB_ScsmBrCBServerJobClass;
END_VAR

Interfaces

Type	Description
I_ScsmBrCBImplClass	Interface of the BRCB control block implementation.

Inputs

Name	Type	Definition location	Description
Client	FB_ScsmBrCBClientJobClass	Local	Client implementation of the BRCB control block.
Server	FB_ScsmBrCBServerJobClass	Local	Server implementation of the BRCB control block.
RptID	FB_AcsiDATypeVisString129	Inherited from FB_AcsiBufferedReportControlBlock	Data attribute, Ed1=>RptID:VisStr[65]!
RptEna	FB_AcsiBATypeBOOLEAN	-//-	Data attribute
DatSet	FB_AcsiDATypeDatSetRef	-//-	Data attribute
ConfRev	FB_AcsiBATypeINT32U	-//-	Data attribute
OptFlds	FB_AcsiDATypeOptFlds	-//-	Data attribute
BufTm	FB_AcsiBATypeINT32U	-//-	Data attribute
SqNum	FB_AcsiBATypeINT16U	-//-	Data attribute
TrgOps	FB_AcsiDATypeTriggerConditions	-//-	Data attribute
IntgPd	FB_AcsiBATypeINT32U	-//-	Data attribute
GI	FB_AcsiBATypeBOOLEAN	-//-	Data attribute
PurgeBuf	FB_AcsiBATypeBOOLEAN	-//-	Data attribute
EntryID	FB_AcsiDATypeEntryID	-//-	Data attribute
TimeOfEntry	FB_AcsiDATypeEntryTime	-//-	Data attribute
ResvTms	FB_AcsiBATypeINT16	-//-	Data attribute, Ed2.
Owner	FB_AcsiDATypeOctet64	-//-	Data attribute, Ed2.

Properties

Name	Type	Access	Definition location	Description
bGI	BOOL	Get, Set	I_ScsmBrCBImplClass	Attribute value: Enabling the general interrogation command.
bPurgeBuf	BOOL	Get, Set	-//-	Attribute value: Enabling the purge command.
bRptEna	BOOL	Get, Set	-//-	Attribute value: Enabling/disabling the RCB control block. Further configuration needed.
cOptFlds	ST_AcsiOptionalFields	Get, Set	-//-	Attribute value: Configuration of the optional fields that are transferred with a report.
cTrgOps	ST_AcsiTriggerConditions	Get, Set	-//-	Attribute value: Configuration of the trigger options for sending a report.
iResvTms	INT	Get, Set	-//-	Attribute value: Configuration of the time for reserving the RCB for a specific client.
nBufTm	DWORD	Get, Set	-//-	Attribute value: Configuration of the max. report buffer time in milliseconds.
nConfRev	DWORD	Get, Set	-//-	Attribute value: Revision number of the RCB control block configuration.
nEntryID	LWORD	Get, Set	-//-	Attribute value: ID of the report entry as 64-bit numerical value.
nIntgPd	DWORD	Get, Set	-//-	Attribute value: Configuration of the max. time between integrity reports in milliseconds.
nSqNum	WORD	Get, Set	-//-	Attribute value: Report sequence number.
oEntryID	T_OCTET8	Get, Set	-//-	Attribute value: ID of the report entry as octet string.
oOwner	T_OCTET64	Get, Set	-//-	Attribute value: Owner of the RCB. IP address of the client which has reserved the RCB for itself (offline/online reservation).
sDatSet	T_AcsiObjectReference	Get, Set	-//-	Attribute value: Name of the linked data set.
sRptID	T_AcsiVisString129	Get, Set	-//-	Attribute value: Report identification string.
tTimeOfEntry	T_BinaryTime	Get, Set	-//-	Attribute value: Report timestamp.
ipDatSet	I_AcsiCommonDataSetClass	Get	-//-	Interface pointer of the linked data set.
ipClient	I_ScsmBrCBClientJobClass	Get	-//-	Interface pointer of the client implementation of the BRCB control block.
ipServer	I_ScsmBrCBServerJobClass	Get	-//-	Interface pointer of the server implementation of the BRCB control block.
