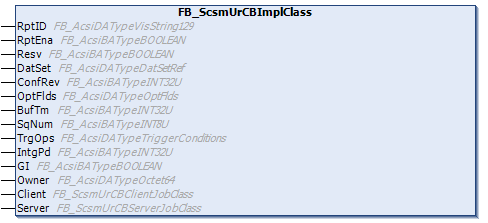

FB_ScsmUrCBImplClass

The function block FB_ScsmUrCBImplClass contains the client and server implementation of the properties and functions of a URCB control block. For each configured GOOSE control block an instance of FB_ScsmUrCBImplClass is created by the TwinCAT Telecontrol Configurator.

Namespace: Tc3_iec61850_8_1
Library: Tc3_iec61850_8_1 (Tc3_iec61850_8_1.compiled-library)

Inheritance hierarchy

FB_AcsiCommonNodeClass -> FB_AcsiCommonDataClass -> FB_AcsiCommonControlBlockClass -> FB_AcsiCommonUnbufferedReportControlBlockClass -> FB_AcsiUnbufferedReportControlBlock -> FB_ScsmUrCBImplClass

FUNCTION_BLOCK FB_ScsmUrCBImplClass EXTENDS FB_AcsiUnbufferedReportControlBlock IMPLEMENTS I_ScsmUrCBImplClass
VAR_INPUT
    Client : FB_ScsmUrCBClientJobClass;
    Server : FB_ScsmUrCBServerJobClass;
END_VAR

Interfaces

Type	Description
I_ScsmUrCBImplClass	Interface of the URCB control block implementation.

Inputs

Name	Type	Definition location	Description
Client	FB_ScsmUrCBClientJobClass	Local	Client implementation of the URCB control block.
Server	FB_ScsmUrCBServerJobClass	Local	Server implementation of the URCB control block.
RptID	FB_AcsiDATypeVisString129	Inherited from FB_AcsiUnbufferedReportControlBlock	Data attribute, Ed1=>RptID:VisStr[65]!
RptEna	FB_AcsiBATypeBOOLEAN	-//-	Data attribute
Resv	FB_AcsiBATypeBOOLEAN	-//-	Data attribute
DatSet	FB_AcsiDATypeDatSetRef	-//-	Data attribute
ConfRev	FB_AcsiBATypeINT32U	-//-	Data attribute
OptFlds	FB_AcsiDATypeOptFlds	-//-	Data attribute
BufTm	FB_AcsiBATypeINT32U	-//-	Data attribute
SqNum	FB_AcsiBATypeINT8U	-//-	Data attribute
TrgOps	FB_AcsiDATypeTriggerConditions	-//-	Data attribute
IntgPd	FB_AcsiBATypeINT32U	-//-	Data attribute
GI	FB_AcsiBATypeBOOLEAN	-//-	Data attribute
Owner	FB_AcsiDATypeOctet64	-//-	Data attribute, Ed2.

Properties

Name	Type	Access	Definition location	Description
bGI	BOOL	Get, Set	I_ScsmUrCBImplClass	Attribute value: Enabling the general interrogation command.
bResv	BOOL	Get, Set	-//-	Attribute value: Reservation of the RCB.
bRptEna	BOOL	Get, Set	-//-	Attribute value: Enabling/disabling the RCB control block. Further configuration needed.
cOptFlds	ST_AcsiOptionalFields	Get, Set	-//-	Attribute value: Configuration of the optional fields that are transmitted with a report.
cTrgOps	ST_AcsiTriggerConditions	Get, Set	-//-	Attribute value: Configuration of the trigger options for sending a report.
nBufTm	DWORD	Get, Set	-//-	Attribute value: Configuration of the max. report buffer time in milliseconds.
nConfRev	DWORD	Get, Set	-//-	Attribute value: Revision number of the RCB control block configuration.
nIntgPd	DWORD	Get, Set	-//-	Attribute value: Configuration of the max. time between integrity reports in milliseconds.
nSqNum	BYTE	Get, Set	-//-	Attribute value: Report sequence number.
oOwner	T_OCTET64	Get, Set	-//-	Attribute value: Owner of the RCB. IP address of the client which has reserved the RCB for itself (offline/online reservation).
sDatSet	T_AcsiObjectReference	Get, Set	-//-	Attribute value: Name of the linked data set.
sRptID	T_AcsiVisString129	Get, Set	-//-	Attribute value: Report identification string.
ipDatSet	I_AcsiCommonDataSetClass	Get	-//-	Interface pointer of the linked data set.
ipClient	I_ScsmUrCBClientJobClass	Get	-//-	Interface pointer of the client implementation of the URCB control block.
ipServer	I_ScsmUrCBServerJobClass	Get	-//-	Interface pointer of the server implementation of the URCB control block.
