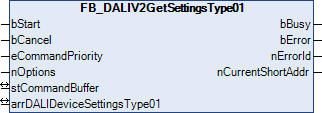

FB_DALIV2GetSettingsType01

FB_DALIV2GetSettingsType01 1:

The function block FB_DALIV2GetSettingsType01 reads the variables (BATTERY CHARGE, DURATION TEST RESULT, LAMP EMERGENCY TIME ...) from all emergency lighting control gears on a DALI line and saves them in a structure of type ST_DALIV2DeviceSettingsType01.

Applying a positive edge to the input bStart starts the function block, and the output bBusy goes TRUE. A check is first made as to whether a control gear is present at all. If this is the case, then the bPresent bit is set in the corresponding structure (see ST_DALIV2DeviceSettingsType01), after which the settings of the control gear are read out one by one and written in the associated variables in the structure. If it is found that a device is not available, the reading is skipped and work continues with the next device. The structure index here reflects the address of the device. In other words, data for the device with short address 0 is located at arrDALIDeviceSettingsType01[0], and so on through to the device with short address 63 having its data at arrDALIDeviceSettingsType01[63]. If a read error occurs when reading from a device, the corresponding bit in nErrors is set for the respective structure without the function block itself switching to error mode. The following table shows which bit is set in the variable nErrors when an error occurs during the reading of a variable from a control gear.

Bit	Error
0	An error occurred whilst attempting to seek the control gear.
1	Error whilst reading the variable BATTERY CHARGE
2	Error whilst reading the variable DURATION TEST RESULT
3	Error whilst reading the variable LAMP EMERGENCY TIME
4	Error whilst reading the variable LAMP TOTAL OPERATION TIME
5	Error whilst reading the variable EMERGENCY LEVEL
6	Error whilst reading the variable EMERGENCY MIN LEVEL
7	Error whilst reading the variable EMERGENCY MAX LEVEL
8	Error whilst reading the variable RATED DURATION
9	Error whilst reading the variable FUNCTION TEST DELAY TIME
10	Error whilst reading the variable DURATION TEST DELAY TIME
11	Error whilst reading the variable FUNCTION TEST INTERVAL
12	Error whilst reading the variable DURATION TEST INTERVAL
13	Error whilst reading the variable TEST EXECUTION TIMEOUT
14	Error whilst reading the variable PROLONG TIME
15	Error whilst reading the variable EMERGENCY MODE
16	Error whilst reading the variable FEATURES
17	Error whilst reading the variable FAILURE STATUS
18	Error whilst reading the variable EMERGENCY STATUS

After processing the function block, the output bBusy changes from TRUE to FALSE. Processing this function block can take several seconds, depending on how many control gears are connected.

Inputs

VAR_INPUT
  bStart           : BOOL;
  bCancel          : BOOL;
  eCommandPriority : E_DALIV2CommandPriority := eDALIV2CommandPriorityHigh;
  nOptions         : DWORD;
END_VAR

Name	Type	Description
bStart	BOOL	The function block is activated by a positive edge at this input.
bCancel	BOOL	A positive edge at this input will disable the function block and hence abort the reading of the variables.
eCommandPriority	E_DALIV2CommandPriority	Priority (high, medium or low) with which the command is processed by the library.
nOptions	DWORD	Options for reading the variables (see table). The individual constants must be linked with OR operators.

Constant	Description
DALIV2_OPTION_BATTERY_CHARGE	The variable BATTERY CHARGE is read.
DALIV2_OPTION_DURATION_TEST_RESULT	The variable DURATION TEST RESULT is read.
DALIV2_OPTION_LAMP_EMERGENCY_TIME	The variable LAMP EMERGENCY TIME is read.
DALIV2_OPTION_LAMP_TOTAL_OPERATION_TIME	The variable LAMP TOTAL OPERATION TIME is read.
DALIV2_OPTION_EMERGENCY_LEVEL	The variable EMERGENCY LEVEL is read.
DALIV2_OPTION_EMERGENCY_MIN_LEVEL	The variable EMERGENCY MIN LEVEL is read.
DALIV2_OPTION_EMERGENCY_MAX_LEVEL	The variable EMERGENCY MAX LEVEL is read.
DALIV2_OPTION_RATED_DURATION	The variable RATED DURATION is read.
DALIV2_OPTION_NEXT_FUNCTION_TEST	The variable FUNCTION TEST DELAY TIME is read.
DALIV2_OPTION_NEXT_DURATION_TEST	The variable DURATION TEST DELAY TIME is read.
DALIV2_OPTION_FUNCTION_TEST_INTERVAL	The variable FUNCTION TEST INTERVAL is read.
DALIV2_OPTION_DURATION_TEST_INTERVAL	The variable DURATION TEST INTERVAL is read.
DALIV2_OPTION_TEST_EXECUTION_TIMEOUT	The variable TEST EXECUTION TIMEOUT is read.
DALIV2_OPTION_PROLONG_TIME	The variable PROLONG TIME is read.
DALIV2_OPTION_EMERGENCY_MODE	The variable EMERGENCY MODE is read.
DALIV2_OPTION_FEATURES	The variable FEATURES is read.
DALIV2_OPTION_FAILURE_STATUS	The variable FAILURE STATUS is read.
DALIV2_OPTION_EMERGENCY_STATUS	The variable EMERGENCY STATUS is read.
DALIV2_OPTION_ALL	All variables are read.

Inputs/outputs

VAR_IN_OUT
  stCommandBuffer             : ST_DALIV2CommandBuffer;
  arrDALIDeviceSettingsType01 : ARRAY [0..63] OF ST_DALIV2DeviceSettingsType01;
END_VAR

Name	Type	Description
stCommandBuffer	ST_DALIV2CommandBuffer	Reference to the internal structure for communication with FB_KL6811Communication (KL6811) or FB_KL6821Communication (KL6821).
arrDALIDeviceSettingsType01	ARRAY OF ST_DALIV2DeviceSettingsType01	Reference to an array with 64 elements. The settings of each individual DALI control gear are stored in this variable.

Outputs

VAR_OUTPUT
  bBusy             : BOOL;
  bError            : BOOL;
  nErrorId          : UDINT;
  nCurrentShortAddr : BYTE;
END_VAR

Name	Type	Description
bBusy	BOOL	When the function block is activated the output is set, and it remains active until execution of the command has been completed.
bError	BOOL	This output is switched to TRUE as soon as an error occurs during the execution of a command. The command-specific error code is contained in nErrorId. Is reset to FALSE by the execution of a command at the inputs.
nErrorId	UDINT	Contains the command-specific error code of the most recently executed command. Is reset to 0 by the execution of a command at the inputs (see error codes).
nCurrentShortAddr	BYTE	Short address of the current control gear from which an attempt is being made to read the variables.

Requirements

Development Environment	PLC library to include
TwinCAT from v3.1.4020.14	Tc2_DALI from v3.4.3.0
