Example: "Following a Planar mover through a Track Network"

Guided by these instructions, you will create a TwinCAT project in which a Planar mover located on a Planar track follows a preceding Planar mover on the same Planar track on its path through a track network.

Following through a track network is realized by the command GearInPosOnTrackWithMasterMover, which is described in more detail in Example: "Synchronizing a Planar mover on a track with another Planar mover". Creating and building a network of Planar tracks is explained in more detail in the Example "Connecting Planar tracks to a network". This example is short and builds on the above examples.

Creating a Planar mover

Creating a Planar track

Creating a PLC

PROGRAM MAIN
VAR
    master_mover  : MC_PlanarMover;
    slave_mover   : MC_PlanarMover;
    track_in      : MC_PlanarTrack;
    track_out1    : MC_PlanarTrack;
    track_out2    : MC_PlanarTrack;
    move_feedback : MC_PlanarFeedback;
    options       : ST_GearInPosOnTrackWithMasterMoverOptions;
    state         : UDINT;
    pos1, pos2    : PositionXYC;
END_VAR

Programming state machines

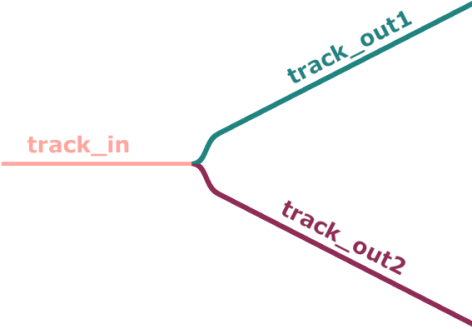

With the following state machine, which is programmed in MAIN, first the Planar tracks are geometrically defined and activated (states 0 to 7), so that they represent the following switch configuration:

In states 8 to 19 the two Planar movers are activated, coupled to the Planar track in front of the switch (track_in) and moved to position 200 (master_mover) or 0 (slave_mover). The Master Planar Mover is then commanded to position 500 on the upper of the two branching Planar tracks (track_out1) (State 20). Finally, in State 21, the GearInPosOnTrackWithMasterMover command is sent to the Slave Planar Mover. As usual, the Planar objects are updated cyclically after the END_CASE statement.

CASE state OF
  0:
    pos1.SetValuesXYC(100, 360, 0);
    pos2.SetValuesXYC(400, 360, 0);
    track_in.AppendLine(0, pos1, pos2);
    track_in.Enable(0);
    state := state + 1;
  1:
    IF track_in.MCTOPLC_STD.State = MC_PLANAR_STATE.Enabled THEN
      state := state + 1;
    END_IF
  2:
    track_out1.StartFromTrack(0, track_in);
    state := state + 1;
  3:
    pos1.SetValuesXYC(450, 410, 0);
    pos2.SetValuesXYC(860, 620, 0);
    track_out1.AppendLine(0, pos1, pos2);
    track_out1.Enable(0);
    state := state + 1;
  4:
    IF track_out1.MCTOPLC_STD.State = MC_PLANAR_STATE.Enabled THEN
      state := state + 1;
    END_IF
  5:
    track_out2.StartFromTrack(0, track_in);
    state := state + 1;
  6:
    pos1.SetValuesXYC(450, 310, 0);
    pos2.SetValuesXYC(860, 100, 0);
    track_out2.AppendLine(0, pos1, pos2);
    track_out2.Enable(0);
    state := state + 1;
  7:
    IF track_out2.MCTOPLC_STD.State = MC_PLANAR_STATE.Enabled THEN
      state := state + 1;
    END_IF
  8:
    master_mover.Enable(0);
    state := state + 1;
  9:
    IF master_mover.MCTOPLC.STD.State = MC_PLANAR_STATE.Enabled THEN
      state := state + 1;
    END_IF
  10:
    master_mover.JoinTrack(0, track_in, 0, 0);
    state := state + 1;
  11:
    IF master_mover.MCTOPLC.STD.CommandMode = MC_PLANAR_MOVER_COMMAND_MODE.OnTrack THEN
      state := state + 1;
    END_IF
  12:
    master_mover.MoveOnTrack(move_feedback, track_in, 200, 0, 0);
    state := state + 1;
  13:
    IF move_feedback.Done THEN
      state := state + 1;
    END_IF
  14:
    slave_mover.Enable(0);
    state := state + 1;
  15:
    IF slave_mover.MCTOPLC.STD.State = MC_PLANAR_STATE.Enabled THEN
      state := state + 1;
    END_IF
  16:
    slave_mover.JoinTrack(0, track_in, 0, 0);
    state := state + 1;
  17:
    IF slave_mover.MCTOPLC.STD.CommandMode = MC_PLANAR_MOVER_COMMAND_MODE.OnTrack THEN
      state := state + 1;
    END_IF
  18:
    slave_mover.MoveOnTrack(move_feedback, track_in, 0, 0, 0);
    state := state + 1;
  19:
    IF move_feedback.Done THEN
      state := state + 1;
    END_IF
  20:
    master_mover.MoveOnTrack(0, track_out1, 500, 0, 0);
    state := state + 1;
  21:
    options.followMover := TRUE;
    slave_mover.GearInPosOnTrackWithMasterMover(0, master_mover, 0, 210, track_in, 10, track_in, 0, options);
    state := state + 1;
END_CASE

master_mover.Update();
slave_mover.Update();
track_in.Update();
track_out1.Update();
track_out2.Update();
move_feedback.Update();

Activating and starting the project

The Master Planar Mover will move to the given target position (in this case 500) on the specified Planar track, and the Slave Planar Mover will follow its movement. The positions of the Planar movers can be tracked in the online view (by clicking the button ).

Since the positions 210 for the master and 10 for the slave were specified as the sync positions of the two Planar movers in the function call in State 21, the Slave Planar Mover will follow its master through the network at a distance of 200. It stops at position 300 on the upper of the two branching Planar tracks (on which the Master Planar Mover is also located), which can be checked in the online view:

Note that setting the "FollowMover" option in the Options object and passing it in the function call in State 21 avoids the need to specify a PlanarTrackTrail object. The path through the network that the Slave Planar Mover should take does not have to be explicitly determined, since it automatically follows the Master Planar Mover and turns to the correct Planar track at the switch. With the set option this behavior is also reproduced in a larger network, where the Master Planar Mover moves across multiple track boundaries.
