FB_BA_BrightnessPresenceDALI

This template is used to read a combined DALI brightness and occupancy sensor.

Data exchange HMI

The data exchange with the HMI is realized in the base class FB_BA_BaseBrightnessPresence (internal function block). The use of the following variable is visible in this template:

bInitializeRm: Start DALI initialization routine from the HMI.

Function

The device itself is specified by the instance number of the presence, nInstancePresence, and the instance number of the brightness, nInstanceBrightness. Added to this is the device-specific resolution, nResBrtns. These three parameters vary from manufacturer to manufacturer.

The brightness is queried cyclically (interval nPrdQueryBrtns [s]) in the internal function block BrightnessPresenceSns. With presence, on the other hand, the device's internal notification system is used, which automatically sends a telegram as soon as presence or absence is detected.

The DALI-specific parameters of this function block (nInstPrc, nInstBrtns and nResBrtns) are transferred to the relevant device via a TRUE signal to bInitialize or via the HMI via bInitialize_In. The device is addressed by naming the addressx (nAdr) and linking the communication block of the corresponding DALI line via ipDALICommunication.

The function block PresenceDelay provides a delayed signal bPresence. After the delay time has elapsed, a positive edge is also emitted at bRstSwi, which can be used to cancel the flag circuits for light and blinds.

Presence and brightness values are linked to the objects Presence and Brightness and are thus available in BACnet.

Any scaling of the brightness can be carried out by parameterization of Brightness in FB_Init using the parameters fResolution and fScaleOffset.

	The initialization of the template takes place within the method FB_Init.

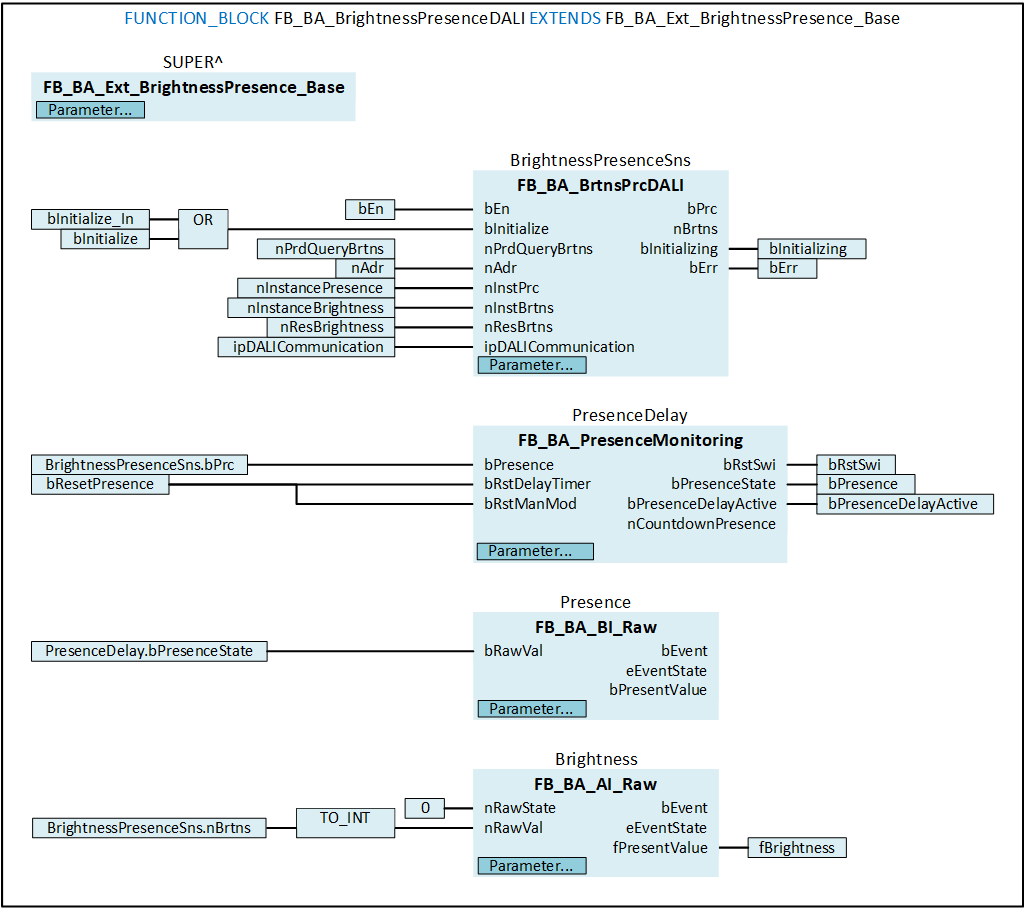

Block diagram

Syntax

FUNCTION_BLOCK FB_BA_BrightnessPresenceDALI EXTENDS FB_BA_Ext_BrightnessPresence_Base
VAR_INPUT
  bEn                      : BOOL;
  bInitialize              : BOOL;
  bResetPresence           : BOOL;
  nPrdQueryBrtns           : UDINT  := 1;
END_VAR
VAR_OUTPUT
  bPresence                : BOOL;
  bPresenceDelayActive     : BOOL;
  bRstSwi                  : BOOL;
  fBrightness              : REAL;
  bInitializing            : BOOL;
  bErr                     : BOOL;
END_VAR
VAR_INPUT CONSTANT PERSISTENT
  nAdr                     : BYTE;
  nInstancePresence        : BYTE;
  nInstanceBrightness      : BYTE;
  nResBrtns                : BYTE;
  ipDALICommunication      : Tc3_DALI.I_DALICommunication;
END_VAR
VAR_INPUT CONSTANT
  BrightnessPresenceSns    : FB_BA_BrtnsPrcDALI;
  PresenceDelay            : FB_BA_PresenceMonitoring;
  Brightness               : FB_BA_AI_RAW;
  Presence                 : FB_BA_BI_RAW;
END_VAR

VAR_INPUT

Name	Type	Description
bEn	BOOL	Enabling the function block: a TRUE signal at this input enables the function.
bInitialize	BOOL	A positive edge at this input starts the DALI initialization routine, which transfers the set parameters to the DALI device, see FB_BA_Swi4DALI.
bResetPresence	BOOL	Resets the internal presence delay and thus triggers the bRstSwi output once.
nPrdQueryBrtns	UDINT	Brightness query interval in seconds. The declaration of this variable as an input is intended to enable a variable query speed. In the case of constant light regulation, for example, a slow query interval is initially sufficient until a larger deviation to be compensated is detected, at which point a shorter interval is used.

VAR_OUTPUT

Name	Type	Description
bPresence	BOOL	Occupancy signal output.
bPresenceDelayActive	BOOL	This output is then set to TRUE if no more presence is detected and the output bPresence is only set by the internal delay.
bRstSwi	BOOL	Reset output for manual overrides. Is set for a PLC cycle after the internal presence delay has elapsed (see PresenceDelay) or when a TRUE signal is received at the input bResetPresence,
fBrightness	REAL	Measured brightness. The unit is vendor-specific. Conversion to lux must be requested from the manufacturer if required.
bInitializing	BOOL	The sensor is in the DALI initialization phase, i.e. the entered parameters are transferred to the DALI device.
bErr	BOOL	Error output. A plain text is output in TwinCAT in the error list in the output window.

VAR_INPUT CONSTANT PERSISTENT

Name	Type	Description
nAdr	BYTE	DALI single address of the sensor.
nInstancePresence	BYTE	Number of the presence instance to be queried.
nInstanceBrightness	BYTE	Number of the brightness instance to be queried.
nResBrtns	BYTE	Vendor-specific brightness resolution.
ipDALICommunication	Tc3_DALI.I_DALICommunication	Interface pointer to the DALI communication block.

VAR_INPUT CONSTANT

Name	Type	Description
BrightnessPresenceSns	FB_BA_BrtnsPrcDALI	Function block for reading the DALI brightness and occupancy sensor.
PresenceDelay	FB_BA_PresenceMonitoring	Universal presence monitoring template with reset inputs for delay timer and manual function.
Brightness	FB_BA_AI_RAW	This function block is used to convert the vendor-specific raw brightness value to a desired unit, for example lux, and also to display the value in BACnet.
Presence	FB_BA_BI_RAW	Function block for displaying the presence state in BACnet.

Requirements

Development environment	Necessary function
TwinCAT from v3.1.4024.35	TF8040 \| TwinCAT Building Automation from V5.0.0.0
