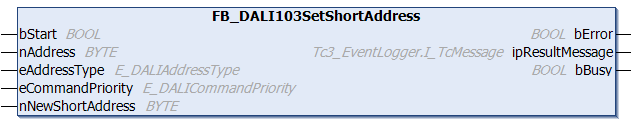

FB_DALI103SetShortAddress

The function block stores the new short address nNewShortAddress in the DALI control device (see shortAddress).

The existing short address in the DALI control device is deleted if a value of 255 is specified at the input.

To address a device without a known short address, the command must be sent as a broadcast (eAddressType = E_DALIAddressType.Broadcast). This gives all control devices connected to the DALI terminal the short address nNewShortAddress.

Alternatively, the function block can be called with Broadcast unaddressed (eAddressType = E_DALIAddressType.BroadcastUnaddr). In this case, only the devices that do not yet have a short address are assigned a short address.

	The function block changes the DTR0 of all connected DALI control devices.

	The function block sends the DALI command SET SHORT ADDRESS twice, as required by the DALI standard for certain DALI commands.

	The function block cannot be used when using the KL6811.

Inputs

VAR_INPUT
  bStart            : BOOL;
  nAddress          : BYTE;
  eAddressType      : E_DALIAddressType := E_DALIAddressType.Short;
  eCommandPriority  : E_DALICommandPriority := E_DALICommandPriority.MiddleLow;
  nNewShortAddress  : BYTE;
END_VAR

Name	Type	Description
bStart	BOOL	Execution of the DALI commands is triggered via a positive edge at this input.
nAddress	BYTE	Address of a DALI control gear or a DALI group.
eAddressType	E_DALIAddressType	Defines whether the input nAddress contains a short address (0…63) or a group address (0…31). The input nAddress has no meaning if a broadcast or a broadcast to unaddressed devices (BroadcastUnaddr) has been selected.
eCommandPriority	E_DALICommandPriority	Priority (low, middle low, middle, middle high, high) with which the DALI commands are sent.

	The command priorities are supported by the KL6821 from the firmware version BD.

Name	Type	Description
nNewShortAddress	BYTE	New short address (0…63, 255)

Outputs

VAR_OUTPUT
  bError                  : BOOL;
  ipResultMessage         : I_TcMessage;
  bBusy                   : BOOL;
END_VAR

Name	Type	Description
bError	BOOL	This output is switched to TRUE if an error occurs during the execution. Further information about the error can be queried via the variable ipResultMessage. The output is set to FALSE again as soon as bBusy switches to TRUE.
ipResultMessage	I_TcMessage	Interface pointer (see error evaluation) that can be used to obtain detailed information about the processing of the function block (see runtime messages). The interface pointer is valid after bBusy has changed from TRUE to FALSE.
bBusy	BOOL	The output is set as soon as execution of the DALI commands has commenced. It remains active until all DALI commands have been processed.

Properties

Name	Type	Access	Initial value	Description
ipDALICommunication	I_DALICommunication	Get,Set	0	Interface Pointer to the communication block (see Transfer of the reference to the communication block).

Requirements

Development environment	required PLC library
TwinCAT from v3.1.4022.29	Tc3_DALI from v3.1.4.0
