FB_SMISendSMICommand

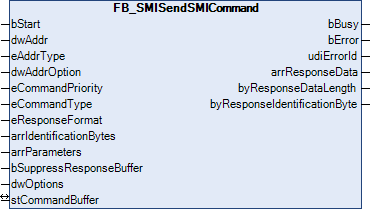

FB_SMISendSMICommand 1:

The function block FB_SMISendSMICommand is used for the general sending of an SMI command. The precise structure of an SMI command and the functioning of the KL6831/KL6841 must be known for this. The use of this function block is necessary only if an SMI command is to be sent that is not covered by the other PLC function blocks.

FB_SMISendSMICommand 2: Inputs

VAR_INPUT
  bStart                  : BOOL;
  dwAddr                  : DWORD := 0;
  eAddrType               : E_SMIAddrType := eSMIAddrTypeAddress;
  dwAddrOption            : DWORD := 0;
  eCommandPriority        : E_SMICommandPriority := eSMICommandPriorityMiddle;
  eCommandType            : E_SMICommandType := eSMICommandTypeWrite;
  eResponseFormat         : E_SMIResponseFormat := eSMIResponseFormatDiagnosis;
  arrIdentificationBytes  : ARRAY [0..2] OF BYTE;
  arrParameters           : ARRAY [0..2] OF DWORD;
  bSuppressResponseBuffer : BOOL := FALSE;
  dwOptions               : DWORD := 0;
END_VAR

Name

Type

Description

bStart

BOOL

The function block is activated by a positive edge at this input.

dwAddr

DWORD

Manufacturer code (0-15), address of a device (0-15), bit field (16 bits) for group addressing or slave ID (32-bit key ID). This input has no meaning if a broadcast is sent.

eAddrType

E_SMIAddrType

Defines whether the input dwAddr is to be evaluated as a manufacturer code, the address of a device, for group addressing or as a slave ID.

dwAddrOption

DWORD

If the SMI device is addressed by slave ID (eAddrType = eSMIAddrTypeSlaveId), then the manufacturer code must be specified via this input.

eCommandPriority

E_SMICommandPriority

Priority (high, medium or low) with which the command is processed by the PLC library.

eCommandType

E_SMICommandType

Command type: Write/Read. This parameter affects bit 5 of the start byte of the SMI telegram.

eResponseFormat

E_SMIResponseFormat

Response format: diagnostic special format/standard. This parameter affects bit 6 of the start byte of the SMI telegram.

arrIdentificationBytes

ARRAY OF BYTE

An SMI telegram can consist of up to 3 blocks. Each block possesses an identification byte. This array defines the three identification bytes.

arrParameters

ARRAY OF DWORD

An SMI telegram can consist of up to 3 blocks. Each block has up to four value bytes. This array defines the value bytes of each block.

bSuppressResponseBuffer

BOOL

If this input is set to TRUE, the internal software buffer is not filled with the responses of the function block FB_KL6831KL6841Communication().

dwOptions

DWORD

Reserved for future extensions

FB_SMISendSMICommand 3: Inputs/outputs

VAR_IN_OUT
  stCommandBuffer : ST_SMICommandBuffer;
END_VAR

Name

Type

Description

stCommandBuffer

ST_SMICommandBuffer

Reference to the structure for communication (buffer) with the function block FB_KL6831KL6841Communication()

FB_SMISendSMICommand 4: Outputs

VAR_OUTPUT
  bBusy                        : BOOL;
  bError                       : BOOL;
  udiErrorId                   : UDINT;
  arrResponseData              : ARRAY [0..7] OF BYTE;
  byResponseDataLength         : BYTE;
  byResponseIdentificationByte : BYTE;
END_VAR

Name

Type

Description

bBusy

BOOL

This output is set as soon as the function block processes a command and remains active until the command has been processed.

bError

BOOL

This output is switched to TRUE as soon as an error occurs during the execution of a command. The command-specific error code is contained in udiErrorId. The output is reset to FALSE by the reactivation of the function block via the input bStart.

udiErrorId

UDINT

Contains the command-specific error code of the most recently executed command. It is reset to 0 by the reactivation of the function block via the input bStart (see error codes).

arrResponseData

ARRAY OF BYTE

The data received from the SMI devices

byResponseDataLength

BYTE

The length of the data received in bytes

byResponseIdentificationByte

BYTE

The received identification byte

Requirements

Development Environment

PLC library to include

TwinCAT from v3.1.4020.14

Tc2_SMI from 3.3.5.0
