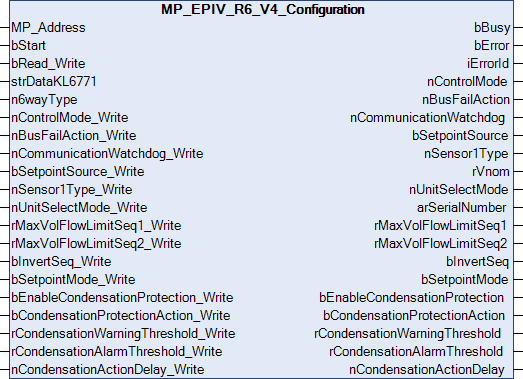

MP_EPIV_R6_V4_Configuration

This function block is used to configure the 6-way EPIV V4 DN 15…25 EP..R6 + BAC-HHx. For more information please visit www.belimo.com.

MP_Address is used to specify the MP-Bus device with which the function block is to communicate. bStart activates communication with the MP-Bus device. bBusy indicates that the function block is active. bError is used to indicate an error in communication with the actuator. The type of the error can be read with iErrorId.

Inputs

VAR_INPUT
  MP_Address                          : USINT := 1;
  bStart                              : BOOL;
  bRead_Write                         : BOOL;
  strDataKL6771                       : DataKL6771;
  n6wayType                           : E_MP_6wayEPIV4:=MPBus_EP0_R6_BAC;
  nControlMode_Write                  : E_MP_EV_V4_ControlMode := 1;
  nBusFailAction_Write                : E_MP_EV6way_V4_BusFailAction;
  nCommunicationWatchdog_Write        : UINT := 120;
  bSetpointSource_Write               : BOOL;
  nSensor1Type_Write                  : E_MP_EV6way_V4_SensorType;
  nUnitSelectMode_Write               : E_MP_EP_R_R6_UnitSel := E_MP_l_h;
  rMaxVolFlowLimitSeq1_Write          : LREAL := 100;
  rMaxVolFlowLimitSeq2_Write          : LREAL := 100;
  bInvertSeq_Write                    : BOOL;
  bSetpointMode_Write                 : BOOL;
  bEnableCondensationProtection_Write : BOOL;
  bCondensationProtectionAction_Write : BOOL;
  rCondensationWarningThreshold_Write : LREAL;
  rCondensationAlarmThreshold_Write   : LREAL;
  nCondensationActionDelay_Write      : UINT;
END_VAR

Name	Type	Description
MP_Address	USINT	MP-Bus address of the slave.
bStart	BOOL	A positive edge starts the function block.
bRead_Write	BOOL	If FALSE then READ only; if TRUE then READ and WRITE.
strDataKL6771	DataKL6771	The data structure with which the KL6771() function block must be linked.
n6wayType	E_MP_6wayEPIV4	Control valve.
nControlMode_Write	E_MP_EV_V4_ControlMode	Control mode.
nBusFailAction_Write	E_MP_EV6way_V4_BusFailAction	Bus failure action.
nCommunicationWatchdog_Write	UINT	Communication monitoring in s (5...3600).
bSetpointSource_Write	BOOL	TRUE = bus; FALSE = analog
nSensor1Type_Write	E_MP_EV6way_V4_SensorType	Sensor 1 type
nUnitSelectMode_Write	E_MP_EP_R_R6_UnitSel	Unit selection.
rMaxVolFlowLimitSeq1_Write	LREAL	Maximum volume flow rate for sequence 1 in %.
rMaxVolFlowLimitSeq2_Write	LREAL	Maximum volume flow rate for sequence 2 in %.
bInvertSeq_Write	BOOL	TRUE = inverted; FALSE = not inverted.
bSetpointMode_Write	BOOL	TRUE = separate setpoints; FALSE = single setpoint
bEnableCondensationProtection_Write	BOOL	TRUE = enabled; FALSE = disabled
bCondensationProtectionAction_Write	BOOL	TRUE = close valve; FALSE = none
rCondensationWarningThreshold_Write	LREAL	Condensation warning threshold in % (5…95) for EP0..R6+BAC+HHM and in V (0.5…9.5) for EP0..R6+BAC.
rCondensationAlarmThreshold_Write	LREAL	Condensation alarm threshold in % (5…95) for EP0..R6+BAC+HHM and in V (0.5…9.5) for EP0..R6+BAC.
nCondensationActionDelay_Write	UINT	Delay in the condensation protection action in seconds.

Outputs

VAR_OUTPUT
  bBusy                         : BOOL;
  bError                        : BOOL;
  iErrorId                      : MP_Error;
  nControlMode                  : E_MP_EV_V4_ControlMode;
  nBusFailAction                : E_MP_EV6way_V4_BusFailAction;
  nCommunicationWatchdog        : UINT;
  bSetpointSource               : BOOL;
  nSensor1Type                  : E_MP_EV6way_V4_SensorType;
  rVnom                         : LREAL;
  nUnitSelectMode               : E_MP_EP_R_R6_UnitSel;
  arSerialNumber                : ARRAY[0..1] OF DWORD;
  rMaxVolFlowLimitSeq1          : LREAL;
  rMaxVolFlowLimitSeq2          : LREAL;
  bInvertSeq                    : BOOL;
  bSetpointMode                 : BOOL;
  bEnableCondensationProtection : BOOL;
  bCondensationProtectionAction : BOOL;
  rCondensationWarningThreshold : LREAL;
  rCondensationAlarmThreshold   : LREAL;
  nCondensationActionDelay      : UINT;
END_VAR

Name	Type	Description
bBusy	BOOL	This bit is set for as long as the function block is active.
bError	BOOL	This output goes TRUE as soon as an error occurs. This error is described via the iErrorId variable.
iErrorId	MP_ERROR	This output outputs an error code in the event of an error. bError goes TRUE at the same time.
nControlMode	E_MP_EV_V4_ControlMode	Control mode.
nBusFailAction	E_MP_EV6way_V4_BusFailAction	Bus failure action.
nCommunicationWatchdog	UINT	Communication monitoring in sec (5...3600).
bSetpointSource	BOOL	TRUE = bus; FALSE = analog
nSensor1Type	E_MP_EV6way_V4_SensorType	Sensor 1 type
rVnom	LREAL	Nominal volume flow in l/s (0…100).
nUnitSelectMode	E_MP_EP_R_R6_UnitSel	Scaling.
arSerialNumber	ARRAY OF DWORD	Serial number of the device.
rMaxVolFlowLimitSeq1	LREAL	Maximum volume flow rate for sequence 1 in %.
rMaxVolFlowLimitSeq2	LREAL	Maximum volume flow rate for sequence 2 in %.
bInvertSeq	BOOL	TRUE = inverted; FALSE = not inverted.
bSetpointMode	BOOL	TRUE = separate setpoints; FALSE = single setpoint
bEnableCondensationProtection	BOOL	TRUE = enabled; FALSE = disabled
bCondensationProtectionAction	BOOL	TRUE = close valve; FALSE = none
rCondensationWarningThreshold	LREAL	Condensation warning threshold in % (5…95) for EP0..R6+BAC+HHM and in V (0.5…9.5) for EP0..R6+BAC.
rCondensationAlarmThreshold	LREAL	Condensation alarm threshold in % (5…95) for EP0..R6+BAC+HHM and in V (0.5…9.5) for EP0..R6+BAC.
nCondensationActionDelay	UINT	Delay in the condensation protection action in seconds.

Requirements

Development environment	PLC library to include
TwinCAT from v3.1.4024.77	Tc2_MPBus from 3.8.1.0
