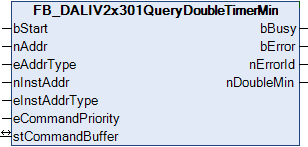

FB_DALIV2x301QueryDoubleTimerMin

The function block FB_DALIV2x301QueryDoubleTimerMin queries the minimum value of the DOUBLE TIMER.

The unit is 20 ms.

Inputs

VAR_INPUT
  bStart            : BOOL;
  nAddr             : BYTE;
  eAddrType         : E_DALIV2AddrType := eDALIV2AddrTypeShort;
  nInstAddr         : BYTE := 0;
  eInstAddrType     : E_DALIV2InstAddrType := eDALIV2InstAddrTypeNumber;
  eCommandPriority  : E_DALIV2CommandPriority := eDALIV2CommandPriorityMiddle;
END_VAR

Name	Type	Description
bStart	BOOL	The function block is activated by a positive edge at this input.
nAddr	BYTE	The address of a device or of a group
eAddrType	E_DALIV2AddrType	Short address, group address or broadcast
nInstAddr	BYTE	Address of the instance within the DALI control device
eInstAddrType	E_DALIV2InstAddrType	Defines the access mode to the desired instance within the DALI control device.
eCommandPriority	E_DALIV2CommandPriority	Priority (high, medium or low) with which the command is processed by the library.

Inputs/outputs

VAR_IN_OUT
  stCommandBuffer   : ST_DALIV2CommandBuffer;
END_VAR

Name	Type	Description
stCommandBuffer	ST_DALIV2CommandBuffer	Reference to the internal structure for communication with FB_KL6821Communication (KL6821).

Outputs

VAR_OUTPUT
  bBusy             : BOOL;
  bError            : BOOL;
  nErrorId          : UDINT;
  nDoubleMin        : BYTE;
END_VAR

Name	Type	Description
bBusy	BOOL	When the function block is activated the output is set, and it remains active until execution of the command has been completed.
bError	BOOL	This output is switched to TRUE as soon as an error occurs during the execution of a command. The command-specific error code is contained in nErrorId. Is reset to FALSE by the execution of a command at the inputs.
nErrorId	UDINT	Contains the command-specific error code of the most recently executed command. Is reset to 0 by the execution of a command at the inputs (see error codes).
nDoubleMin	BYTE	Value of the DOUBLE TIMER [20 ms]

Requirements

Development Environment	PLC library to include
TwinCAT from v3.1.4022.4	Tc2_DALI from v3.6.2.0
