FB_BA_Facade_ParkPosition

Sub-template Park position.

This function allows a park position and a park angle to be entered and the corresponding sun protection telegram to be activated, which is then available to the higher-level facade template at the stSunblind output.

The initialization of the template takes place within the method FB_Init.

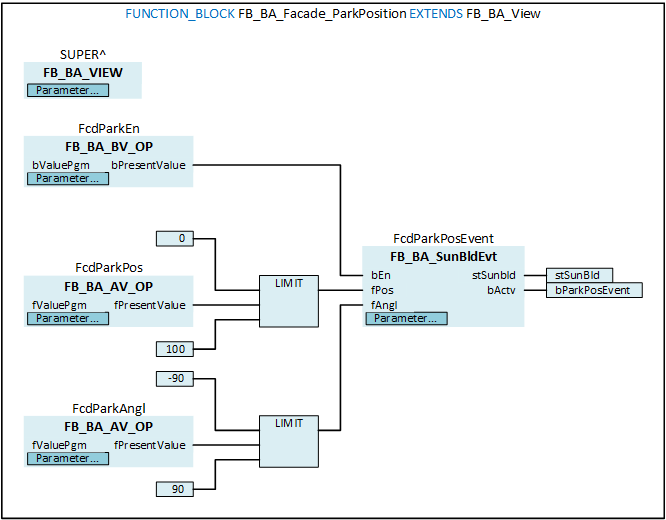

Block diagram

Syntax

FUNCTION_BLOCK FB_BA_Facade_ParkPosition EXTENDS FB_BA_View
VAR_OUTPUT
  stSunBld           : ST_BA_SunBld;
  bParkPosEvent      : BOOL;
END_VAR
VAR_INPUT CONSTANT
  FcdParkEn          : FB_BA_BV_Op;
  FcdParkPos         : FB_BA_AV_Op;
  FcdParkAngl        : FB_BA_AV_Op;
  FcdParkPosEvent    : FB_BA_SunBldEvt := (ePrio:=E_BA_SunBldPrio.eParkPosition);
END_VAR
