FB_IotFunctions_Request

The function block enables the synchronization of multiple messages (see Synchronizing message operations).

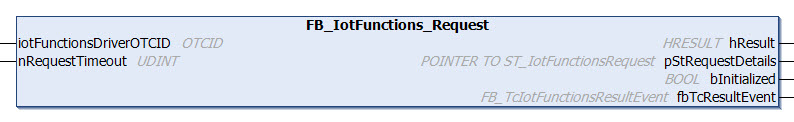

Syntax

FUNCTION_BLOCK FB_IotFunctions_Request
VAR_INPUT
    iotFunctionsDriverOTCID : OTCID;
    nRequestTimeout         : UDINT;
END_VAR
VAR_OUTPUT
    hResult             : HRESULT;
    pStRequestDetails   : POINTER TO ST_IotFunctionsRequest;
    bInitialized        : BOOL;
    fbTcResultEvent     : FB_TcIotFunctionsResultEvent;
END_VAR

Inputs

Designation	Type	Description
iotFunctionsDriverOTCID	OTCID	OTCID of the target IotFunctions driver instance [defaults to the first created object of the FB_IotFunctions_Connector]
nRequestTimeout	UDINT	Timeout value in milliseconds

Outputs

Designation	Type	Description
hResult	HRESULT	Contains the hresult of the last message (is updated when bBusy or bError is accessed or Create/Execute/EnqueueRead/EnqueueWrite is called)
pStRequestDetails	POINTER TO ST_IotFunctionsRequest	Pointer to structure containing details information about the underlying request
bInitialized	BOOL	Indicates whether interface search and initialization was successful
fbTcResultEvent	FB_TcIotFunctionsResultEvent	Instance of a helper function block that contains detailed information about the send or receive process.

Methods

Designation	Description
Create	Creates a new request
EnqueueRead	Adds an instance of FB_IotFunctions_Message for read operation
EnqueueWrite	Adds an instance of FB_IotFunctions_Message for write operations
Execute	Executes the request
Acknowledge	Acknowledges the error/success status and releases the associated message objects. Call this method after status acknowledgement if no new read/write process is started in this cycle to prevent multiple evaluation of the last status.

Requirements

Development environment	Target platform	PLC libraries to include
TwinCAT v3.1.4022.14	IPC or CX (c86, x64, ARM)	Tc3_IotFunctions
