Production register

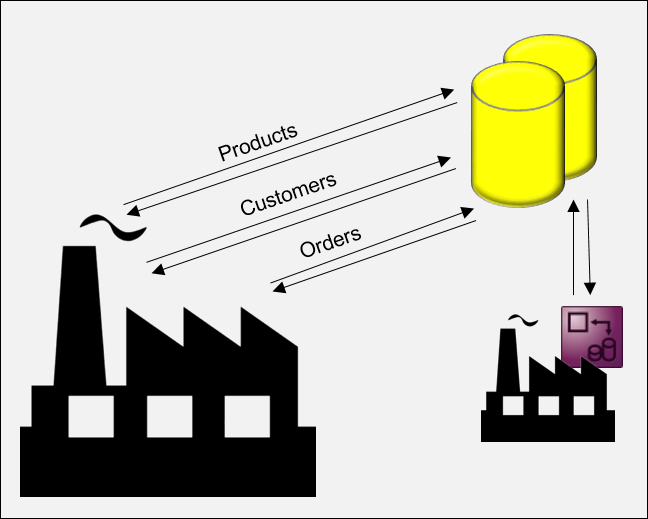

This scenario example illustrates the use of the SQL Expert Mode for handling stored procedures. A connection to the database established from the PLC. A stored procedure is used to read product positions from several tables. A visualization is used for the operation.

In the MAIN program a so-called state machine is implemented for processing, through which the different SQL function blocks are controlled. Since the methods of the function blocks no longer have an Execute flag, the user must ensure that the method is not called again in the next cycle, in order to avoid repetition of the procedure. This can easily be ensured through the state machine.

PROGRAM MAIN
VAR
    bCONNECT: BOOL;
    bEXECUTE: BOOL;
    bREAD : BOOL;
    bDISCONNECT: BOOL;

    R_TRIG1: R_TRIG;
    R_TRIG2: R_TRIG;
    R_TRIG3: R_TRIG;
    R_TRIG4: R_TRIG;

    nState: INT;
    nState_Connect: INT;
    nState_Disconnect: INT;

    bConn: BOOL;
    bSP: BOOL;
    bResult: BOOL;
    bData: BOOL;

    nDBID: UDINT := 1;

    fbSQLDatabase: FB_SQLDatabaseEvt(sNetID:='', tTimeout:=T#10S);
    fbSQLStoredProcedure: FB_SQLStoredProcedureEvt(
                        sNetID:='', tTimeout:=T#10S);
    fbSQLResult: FB_SQLResultEvt(sNetID:='', tTimeout:=T#10S);

    arrParameter: ARRAY [0..0] OF ST_SQLSPParameter;

    nCustomerID: DINT := 12345;

    nRecordStartIndex: UDINT;
    stRecordArr: ARRAY [1..20] OF ST_Record;
    nRecs: UDINT;

    ipResultEvt : Tc3_Eventlogger.I_TcMessage;
    bError : BOOL;
    nEventID: UDINT;
    sEventClass : STRING(255);
    sEventMsg : STRING(255);
END_VAR

R_TRIG1(CLK:=bCONNECT);
IF R_TRIG1.Q AND nState = 0 THEN
    nState := 1;
END_IF

R_TRIG2(CLK:=bEXECUTE);
IF R_TRIG2.Q AND nState = 0 THEN
    nState := 2;
END_IF

R_TRIG3(CLK:=bREAD);
IF R_TRIG3.Q AND nState = 0 THEN
    nState := 3;
END_IF

R_TRIG4(CLK:=bDISCONNECT);
IF R_TRIG4.Q THEN
    nState := 4;
END_IF

CASE nState OF
0:(*Idle*)
    ;
1: // Connect to database and create stored procedure instance
    CASE nState_Connect OF
        0:
            IF fbSQLDatabase.Connect(hDBID:= nDBID) THEN
                ipResultEvt := fbSQLDatabase.ipTcResult;
                bConn := NOT fbSQLDatabase.bError;
                IF bConn THEN
                    nState_Connect := 1;
                ELSE
                    nState:=200;
                END_IF
            END_IF
        1:
            arrParameter[0].sParameterName := '@Customer_ID';
            arrParameter[0].eParameterDataType :=
                            Tc3_Database.E_ColumnType.Integer;
            arrParameter[0].eParameterType := E_SPParameterType.Input;
            arrParameter[0].nParameterSize := SIZEOF(nCustomerID);

            IF fbSQLDatabase.CreateSP('SP_GetAddressByCustomerID',
                         ADR(arrParameter), SIZEOF(arrParameter),
                        ADR(fbSQLStoredProcedure)) THEN
                ipResultEvt:= fbSQLDatabase.ipTcResult;
                bSP := NOT fbSQLDatabase.bError;
                nState_Connect:=0;
                nState := 200;
            END_IF
    END_CASE
2: // Execute stored procedure
    IF fbSQLStoredProcedure.ExecuteDataReturn(
                        pParameterStrc:= ADR(nCustomerID),
                        cbParameterStrc:= SIZEOF(nCustomerID),
                        pSQLDBResult:= ADR(fbSQLResult)) THEN
        ipResultEvt:= fbSQLStoredProcedure.ipTcResult;
        MEMSET(ADR(stRecordArr),0,SIZEOF(stRecordArr));
        bResult := NOT fbSQLStoredProcedure.bError;
        nState := 200;
    END_IF
3:    // Read customer positions
    IF fbSQLResult.Read(nRecordStartIndex, 20, ADR(stRecordArr),
                    SIZEOF(stRecordArr), TRUE, FALSE) THEN
        ipResultEvt:= fbSQLResult.ipTcResult;
        bData := NOT fbSQLStoredProcedure.bError;
        nRecs := fbSQLResult.nDataCount;
        nState := 200;
    END_IF
4:// Disconnect all
    CASE nState_Disconnect OF
        0:
            IF bData THEN
                IF fbSQLResult.Release() THEN
                    nState_Disconnect := 1;
                END_IF
            ELSE
                nState_Disconnect := 1;
            END_IF
        1:
            IF bSP THEN
                IF fbSQLStoredProcedure.Release() THEN
                    nState_Disconnect := 2;
                END_IF
            ELSE
                nState_Disconnect := 2;
            END_IF
        2:
            IF bConn THEN
                IF fbSQLDatabase.Disconnect() THEN
                    nState_Disconnect := 3;
                END_IF
            ELSE
                nState_Disconnect := 3;
            END_IF
        3:
            bData := FALSE;
            bSP := FALSE;
            bConn := FALSE;
            bResult := FALSE;
            sEventClass := "";
            sEventMsg := "";
            nEventID := 0;
            bError := FALSE;
            nState_Disconnect := 0;
            nState := 0;
    END_CASE
200:
    IF ipResultEvt.RequestEventText(1033, sEventMsg, SIZEOF(sEventMsg)) THEN
        nState := 201;
    END_IF
201:
    IF ipResultEvt.RequestEventClassName(1033, sEventClass, SIZEOF(sEventClass)) THEN

        nEventID := ipResultEvt.nEventId;

        bError := (ipResultEvt.eSeverity = TcEventSeverity.Error) OR
                 (ipResultEvt.eSeverity = TcEventSeverity.Critical);

        nState:=0;
    END_IF
END_CASE

The individual process steps can be reproduced in the individual PLC states. Boolean flags are available to facilitate handling.

1. bConnect: Connection with the database is established
2. bExecute: The stored procedure is executed, and results are loaded into the cache
3. bRead: The results are transferred to the PLC
4. bDisconnect: The connection is closed

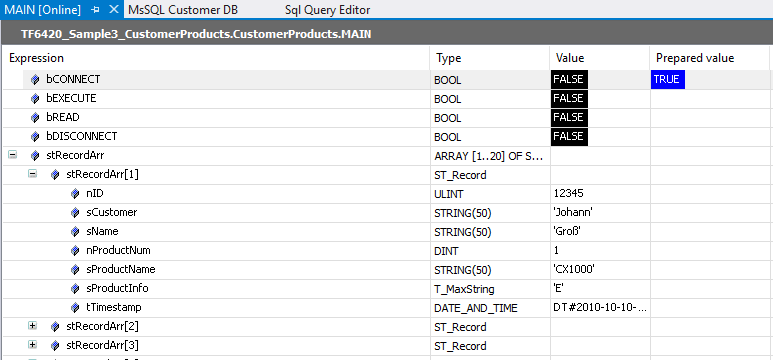

If these steps are executed consecutively, the array stRecordArr is filled with values from the database:
