Extensions
- Open motion control views from the menu bar.
- 1. TwinCAT > MC3
- 2. Make a choice of the desired view.
- The following views are available.
Page | Description |
|---|---|
Motion Versioning | Managing the TMC Versions of MC3 motion objects |
Motion Axis View | Detailed view and control of a single axis |
Motion Axes List View | List of all axes |
Motion Cam Table View | Displaying the cam plate tables |
Motion Versioning

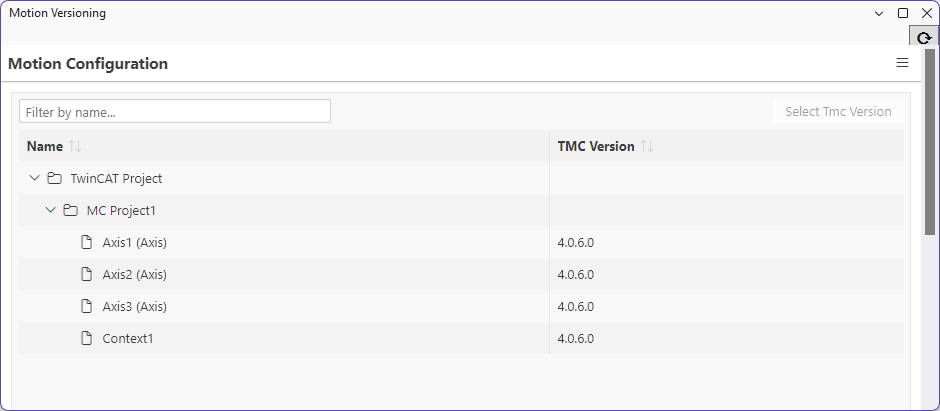

The Motion Versioning extension is used to manage and provide an overview of all motion projects and their components within a TwinCAT project. It displays the hierarchical structure of the configured axes, cam plates, and contexts, and allows you to manage the associated TMC versions. This extension is described in the chapter Version control.
Motion Axis View
This view essentially corresponds to the view in the Motion UI tab tab of the individual axis. Advantage: This page can be opened multiple times as an extension, allowing different individual axes to be viewed and controlled simultaneously in separate windows.
Motion Axes List View
This view essentially corresponds to the axis overview Axes in a Motion project. Advantage: This page can be opened multiple times as an extension, allowing you to view and operate different axis overviews simultaneously.
Motion Cam Table View
This view essentially corresponds to the view in the Camming UI tab of the cam table. Advantage: This page can be opened multiple times as an extension, allowing you to view different cam plates side by side in separate windows.
