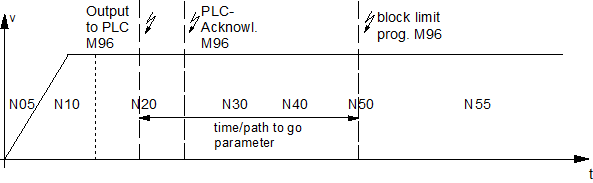

Synchronisation types MET_MOS, MEP_MOS
Synchronisation types without synchronisation with time or path-related pre-output. The associated pre-output values are set in P-CHAN-00070 (m_pre_outp[i]):
 | MEP_MOS and MET_MOS require no acknowledgement; they must still be deleted in the PLC. The same constraints apply to overlap programming as for synchronisation types MEP_SVS and MET_SVS. |
Synchronisation types MOS, MOS_TS, MVS_SVS, MVS_SNS, MNS_SNS in combination with the 'microjoints' function
See Pre-output of M functions (MicroJoint)
| Use of this function requires a license for the “Cutting” option. It is not included in the scope of the standard license. |

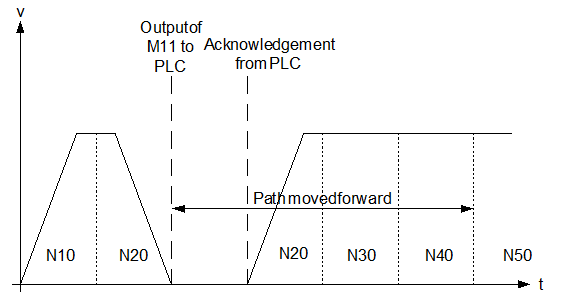

In addition, a path-related pre-output can be specified for synchronisation types MOS, MOS_TS, MVS_SVS, MVS_SNS and MNS_SNS. This path can be defined in the channel parameter list or in the NC program.
In this case the the M function is output by the specified distance relative to the current block start. M functions brought forward are then treated as if they were programmed without any motion.
With synchronisation types MVS_SVS, MVS_SNS and MNS_SNS an acknowledgement is also expected at this point (MOS and MOS_TS require no acknowledgement but they must still be deleted in the PLC).
With synchronisation type MCS_SNS: if it is necessary to split blocks due to the pre-output since the pre-output fails to occur at an existing block limit, the split block is synchronised at the end and not at the output point.
Programming Example
| This functionality is available as of Build V2.10.1507.05. |
