TcHmiStateMachineV3

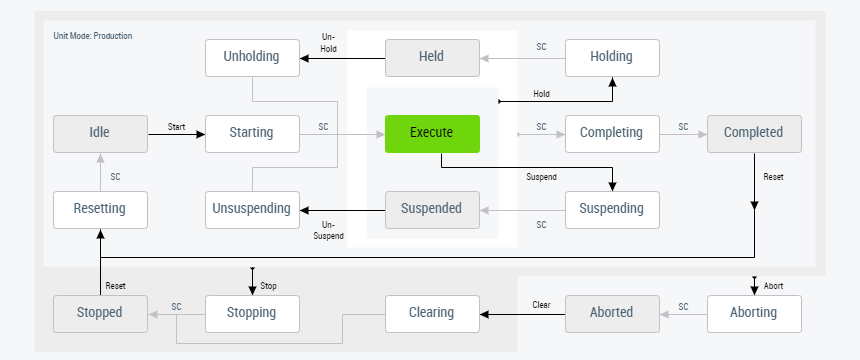

The State Machine V3 Control is a control to display the PackML Statemodel version 3 in the HMI.

TcHmiStateMachineV3 1:

Server extensions

-

Inheritance hierarchy

TcHmiControl > TcHmiStateMachineV2 > TcHmiStateMachineV3

NuGet package: Beckhoff.TwinCAT.HMI.PackML

TcHmiStateMachineV3 2:

NuGet packages are available from version 1.12.

TcHmiStateMachineV3 3:

The control is included in the NuGet package Beckhoff.TwinCAT.HMI.PackML >= 14.3.133. The package can be installed via TcPkg (TwinCAT.HMI.PackML) or nuget.org.
