TcHmiStateMachineV2

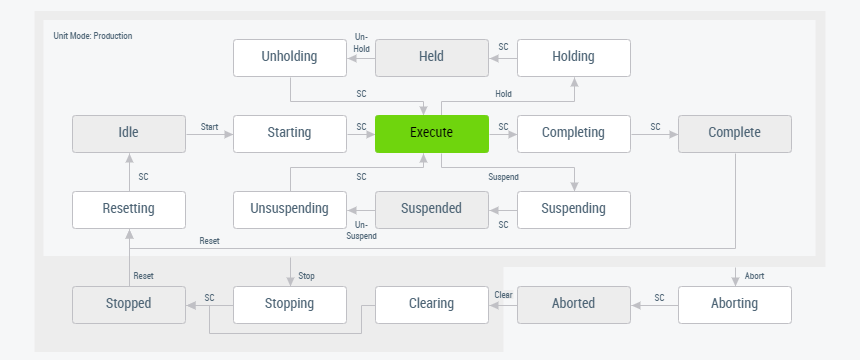

The State Machine V2 Control is a control to display the PackML Statemodel version 2 in the HMI.

TcHmiStateMachineV2 1:

Server extensions

-

Inheritance hierarchy

TcHmiControl > TcHmiStateMachineV2

NuGet package: Beckhoff.TwinCAT.HMI.PackML

TcHmiStateMachineV2 2:

NuGet packages are available from version 1.12.

TcHmiStateMachineV2 3:

The control is included in the NuGet package Beckhoff.TwinCAT.HMI.PackML >= 1.12.760.37. The package can be installed via TcPkg (TwinCAT.HMI.PackML) or nuget.org.
