Shapes

The shapes form a new subgroup of the graph elements. They are created under the axis group in an XY chart.

There are two types of shape:

• Angular shapes (defined by coordinates)
• Round shapes (defined by a center point and two radii)

From version 3.4.3146.0 it is even possible that the shapes move within the XY plot. For this purpose, offset and scaling factor or alternatively the individual significant points of the shapes can be linked to variables from the data pool.

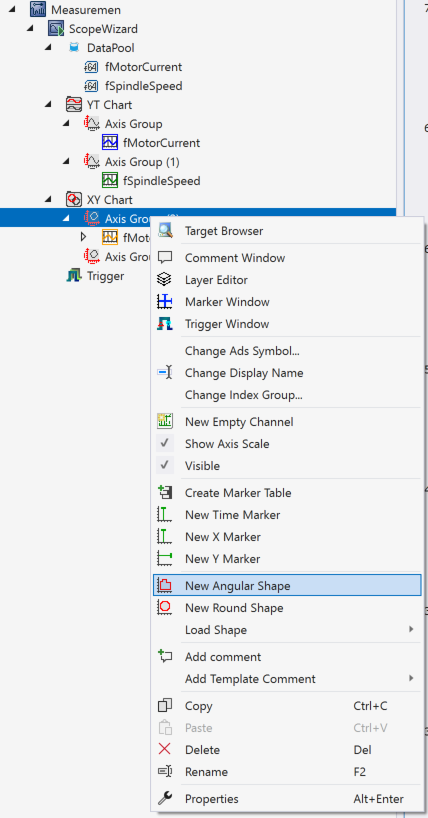

A shape is added via the context menu of an axis group:
