FB_MBUS_JAN_UMG96S

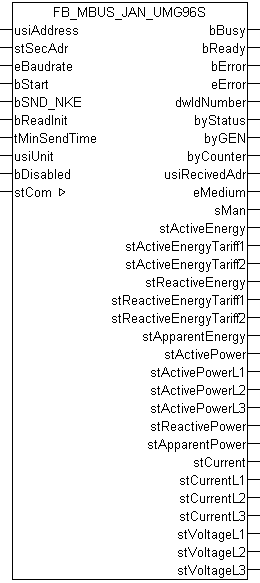

FB_MBUS_JAN_UMG96S 1:

This block is used for reading electricity meters from Janitza:

-UMG96S

The block can only be used in conjunction with the block FB_MBUSKL6781().

Functionality of the function block

VAR_INPUT

usiAddress           : USINT;
stSecAdr             : ST_MBUS_SecAdr;
eBaudrate            : E_MBUS_Baudrate := eMBUS_Baud2400;
bStart               : BOOL;
bSND_NKE             : BOOL := TRUE;
bReadInit            : BOOL := TRUE;
tMinSendTime         : TIME := t#2s;
usiUnit              : USINT;
bDisabled            : BOOL := FALSE;

usiAddress: Primary address of the counter, that shall be readout with this module.

stSecAdr: Secondary address of the counter, that shall be readout with this module.

eBaudrate: 300, 2400, 9600 baud.

bStart: Positive edge on this input, the meter is read out once.

bSND_NKE: TRUE to initialize the meter at each reading, and sets the meter on the first telegram (SND_NKE).

bReadInit: After restarting the PLC, the meter is read out once.

tMinSendTime: Standard t#2s. When this time exceeds, the counter is rereadout. At t#0s the counter is not readout and can be readout with bStart manually.

usiUnit: Unit of the energy values. 0=W/J(h) / 1=KW/KJ(h) / 2=MW/MJ(h) / 3=GW/GJ(h).

bDisabled: TRUE = disable the function block.

VAR_OUTPUT

bBusy                    : BOOL;
bReady                   : BOOL;
bError                   : BOOL;
eError                   : E_MBUS_ERROR;
dwIdNumber               : DWORD;
byStatus                 : BYTE;
byGEN                    : BYTE;
byCounter                : BYTE;
usiRecivedAdr            : USINT;
eMedium                  : E_MBUS_Medium;
sMan                     : STRING(3);
stActiveEnergy           : ST_MBus_Info;
stActiveEnergyTariff1    : ST_MBus_Info;
stActiveEnergyTariff2    : ST_MBus_Info;
stReactiveEnergy         : ST_MBus_Info;
stReactiveEnergyTariff1  : ST_MBus_Info;
stReactiveEnergyTariff2  : ST_MBus_Info;
stApparentEnergy         : ST_MBus_Info;
stActivePower            : ST_MBus_Info;
stActivePowerL1          : ST_MBus_Info;
stActivePowerL2          : ST_MBus_Info;
stActivePowerL3          : ST_MBus_Info;
stReactivePower          : ST_MBus_Info;
stApparentPower          : ST_MBus_Info;
stCurrent                : ST_MBus_Info;
stCurrentL1              : ST_MBus_Info;
stCurrentL2              : ST_MBus_Info;
stCurrentL3              : ST_MBus_Info;
stVoltageL1              : ST_MBus_Info;
stVoltageL2              : ST_MBus_Info;
stVoltageL3              : ST_MBus_Info;

bBusy: The bBusy output is TRUE while the meter is being read.

bReady: The bReady output is TRUE for one cycle, once meter reading is completed.

bError: The bError output becomes TRUE as soon as an error occurs. The error is described via the variable eError.

eError: The eError output issues an error code when an error occurs (see E_MBUS_ERROR).

dwIdNumber: Serial number of the meter (secondary address).

byStatus: Status of the meter. Please refer to device description for meanings.

byGEN: Meter software version.

byCounter: Transmission counter (number of transmitted RSP_UD).

usiRecivedAdr: Received primary address (0-250).

eMedium: Medium (see E_MBUS_Medium).

sMan: Manufacturer code.

stActiveEnergy: Meter reading, active energy (telegram 2, data point 14) (see ST_MBus_Info).

stActiveEnergyTariff1: Meter reading, active energy, tariff 1(telegram 2, data point 15) (see ST_MBus_Info).

stActiveEnergyTariff2: Meter reading, active energy, tariff 2(telegram 2, data point 16) (see ST_MBus_Info).

stReactiveEnergy: Meter reading, reactive energy (telegram 2, data point 17) (see ST_MBus_Info).

stReactiveEnergyTariff1: Meter reading, reactive energy, tariff 1(telegram 2, data point 18) (see ST_MBus_Info).

stReactiveEnergyTariff2: Meter reading, reactive energy, tariff 2(telegram 2, data point 19) (see ST_MBus_Info).

stApparentEnergy: Meter reading, apparent energy (telegram 2, data point 20) (see ST_MBus_Info).

stActivePower: Active power (telegram 2, data point 29) (see ST_MBus_Info).

stActivePowerL1: Active power phase L1 (telegram 2, data point 38) (see ST_MBus_Info).

stActivePowerL2: Active power phase L2 (telegram 2, data point 39) (see ST_MBus_Info).

stActivePowerL3: Active power phase L3 (telegram 2, data point 40) (see ST_MBus_Info).

stReactivePower: Reactive power (telegram 2, data point 30) (see ST_MBus_Info).

stApparentPower: Apparent power (telegram 2, data point 31) (see ST_MBus_Info).

stCurrent: Current (telegram 2, data point 28) (see ST_MBus_Info).

stCurrentL1: Current phase L1 (telegram 2, data point 35) (see ST_MBus_Info).

stCurrentL2: Current phase L2 (telegram 2, data point 36) (see ST_MBus_Info).

stCurrentL3: Current phase L3 (telegram 2, data point 37) (see ST_MBus_Info).

stVoltageL1: Voltage phase L1 (telegram 2, data point 32) (see ST_MBus_Info).

stVoltageL2: Voltage phase L2 (telegram 2, data point 33) (see ST_MBus_Info).

stVoltageL3: Voltage phase L3 (telegram 2, data point 34) (see ST_MBus_Info).

VAR_IN_OUT

stCom            : ST_MBUS_Communication;

stCom: About this structure, the block FB_MBUSKL6781() is connected to the meter function blocks (see ST_MBUS_Communication).

Download sample program for PC/CX systems: FB_MBUS_JAN_UMG96S 2:

Download sample program for BX systems: FB_MBUS_JAN_UMG96S 3:

Controller configuration setting: "BCxx50 or BX serial"

Download sample program for BC systems: FB_MBUS_JAN_UMG96S 4:

BCxx00 must be set to "Large Model" in the PLC under "Project/Options/Controller Settings".

Controller configuration setting: "BC serial"
