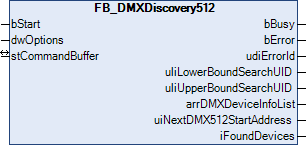

FB_DMXDiscovery512

This function block searches for up to 512 DMX devices and automatically sets the start address (optional). The most important information for the devices found is displayed in a structure.

Inputs

VAR_INPUT
  bStart    : BOOL;
  dwOptions : DWORD;
END_VAR

Name	Type	Description
bStart	BOOL	The function block is activated by a positive edge at this input.
dwOptions	DWORD	Options (see table). The individual constants must be linked with OR operators.

Constant	Description
DMX_OPTION_COMPLETE_NEW_DISCOVERY	All DMX devices are taken into account.
DMX_OPTION_SET_START_ADDRESS	The start address is set for all DMX devices that are found. Consecutive, starting with 1.
DMX_OPTION_OPTICAL_FEEDBACK	When a DMX device is found, the function IDENTIFY_DEVICE is called for two seconds.

Inputs/outputs

VAR_IN_OUT
  stCommandBuffer : ST_DMXCommandBuffer;
END_VAR

Name	Type	Description
stCommandBuffer	ST_DMXCommandBuffer	Reference to the structure for communication (buffer) with the function block FB_EL6851Communication()

Outputs

VAR_OUTPUT
  bBusy                    : BOOL;
  bError                   : BOOL;
  udiErrorId               : UDINT;
  uliLowerBoundSearchUID   : T_ULARGE_INTEGER;
  uliUpperBoundSearchUID   : T_ULARGE_INTEGER;
  arrDMXDeviceInfoList     : ARRAY [1..512] OF ST_DMXDeviceInfo;
  uiNextDMX512StartAddress : UINT;
  iFoundDevices            : INT;
END_VAR

Name	Type	Description
bBusy	BOOL	When the function block is activated the output is set, and it remains active until execution of the command has been completed. For some errors (e.g. faulty parameters), bError is set immediately after the positive edge at bStart without bBusy switching to TRUE.
bError	BOOL	This output is switched to TRUE as soon as an error occurs during the execution of a command. The command-specific error code is contained in udiErrorId. Only valid if bBusy is FALSE.
udiErrorId	UDINT	Contains the command-specific error code of the most recently executed command. Only valid if bBusy is FALSE (see error codes).
uliLowerBoundSearchUID	T_ULARGE_INTEGER	During the search, the lower search address is sent to this output.
uliUpperBoundSearchUID	T_ULARGE_INTEGER	During the search, the upper search address is sent to this output.
arrDMXDeviceInfoList	ARRAY OF ST_DMXDeviceInfo	Array with the most important information of the found DMX devices.
uiNextDMX512StartAddress	UINT	If the DMX_OPTION_SET_START_ADDRESS option is activated, then the start address that will be assigned to the next DMX device will be displayed at this output.
iFoundDevices	INT	During the search, the current number of devices found will be available at this output.

Requirements

Development environment	PLC library to include
TwinCAT from v3.1.4020.14	Tc2_DMX from 3.5.3.0
