Measuring range 0 … 20 mA

Technical data	Measuring range
Input resistance	typ. 85 Ω
Measuring range, nominal	0…20 mA
Measuring range, end value (full scale value)	20 mA
Measuring range, technically usable	-0.186…+21.474 mA, overcurrent-protected
Fuse protection	Internal overload limiting, continuous current resistant
PDO resolution	16-bit, including sign

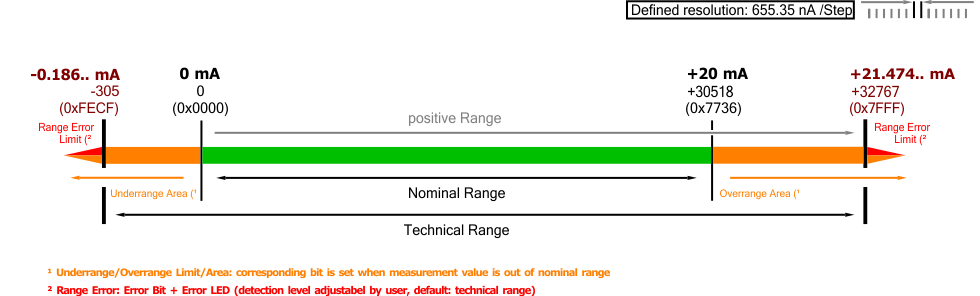

PDO LSB (Extended Range)	655.35 nA

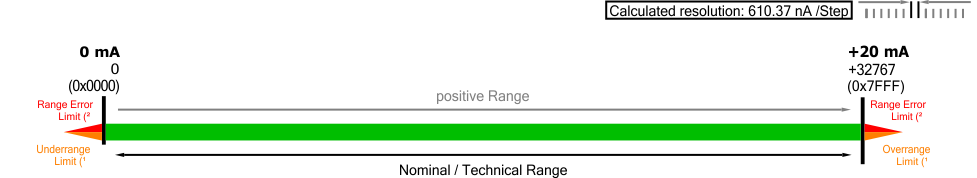

PDO LSB (Legacy Range)	610.37 nA

Factory setting: "Extended Range" mode
