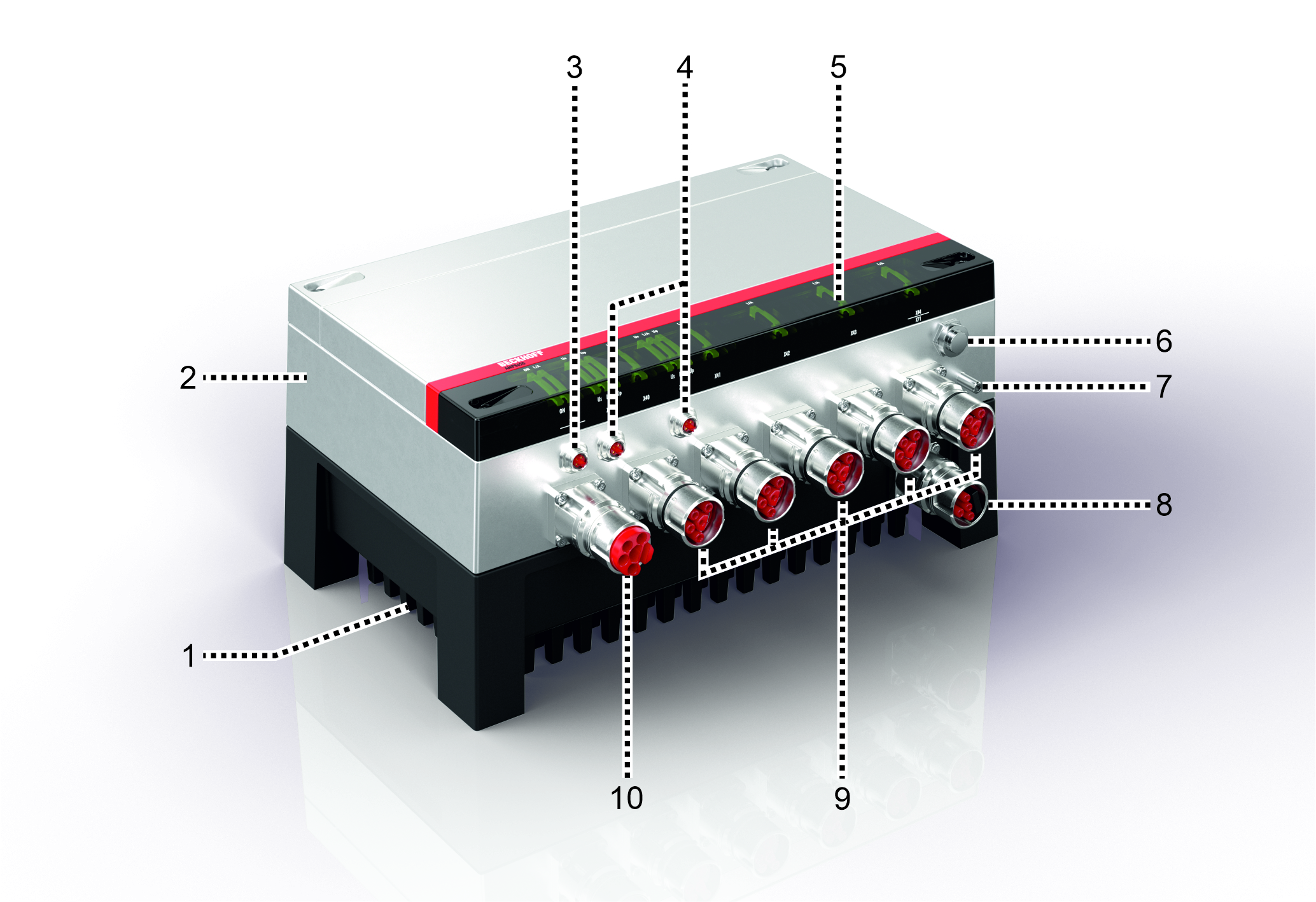

AMP8620 power supply module

1

Heat sink

2

Housing

3

X10: fieldbus input for EtherCAT; M8

4

X20 and X21: fieldbus output for EtherCAT P; M8

5

Display of the status LEDs

6

Pressure compensation element

7

Ground connection

8

X40 to X44: AMP8000 system output B23

9

Only for AMP8620-2005-02x0 [+]:

X71: connection for external braking resistor

10

X01: connection of the supply network
