Setting up the visualization

The visualization is designed for the XS style. Unpleasant display errors can occur if you use a different style. You can also define the default language here.

It may be the case with some devices that graphics are not displayed properly. Then select Extended settings → visible →Convert images to: →png.

Setting up the visualization 1:

If the problem persists, it may help to clear the browser cache.

Notice

Secure the functions!

Be sure to create a user management, as otherwise all functions will be operable without a password!

Setting up the visualization 2:

The start visualization for the target and web visualization must be linked as follows:

"Tc3_LS.BA_LS_Main"

If you use the web visualization without tablet, set the Default Text input to "Keyboard" so that the entries can be made via the keyboard.

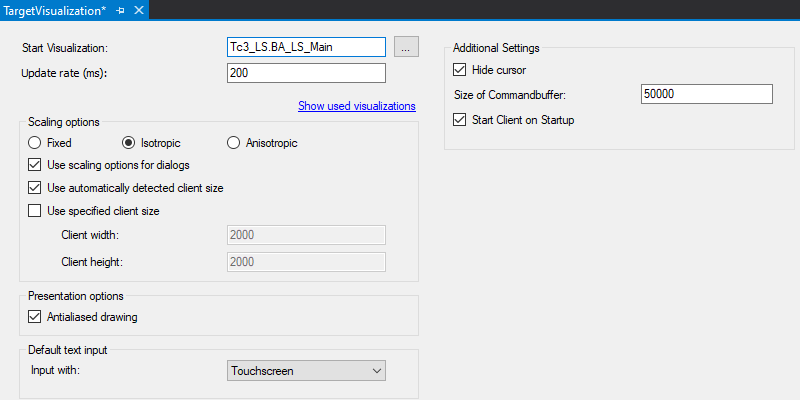

Setting up the visualization 3:

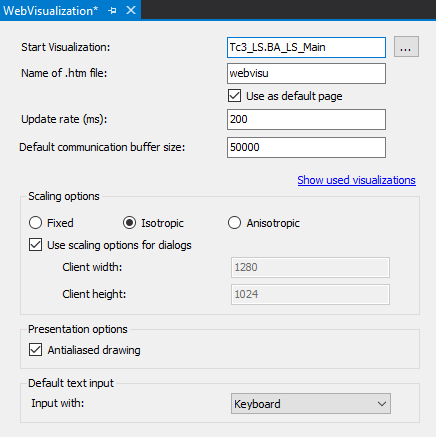

Setting up the visualization 4:
