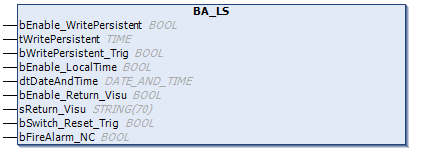

BA_LS

Inputs

bEnable_WritePersistent    : BOOL      := TRUE;
tWritePersistent           : TIME      := T#48H;
bWritePersistent_Trig      : BOOL;
bEnable_LocalTime          : BOOL      := TRUE;
dtDateAndTime              : DT;
bEnable_Return_Visu        : BOOL      := FALSE;
sReturn_Visu               : STRING(70):= 'Webvisu'; bFireAlarm_NC              : BOOL      := TRUE;
bSwitch_Reset_Trig         : BOOL;

Name	Type	Description
bEnable_WritePersistent	BOOL	Allows cyclic persistent writing to the controller.
tWritePersistent	TIME	Cyclic persistent saving of the configured data. The input bEnable_WritePersistent must be true.
bWritePersistent_Trig	BOOL	A positive edge executes the persistent writing of the data. The input bEnable_WritePersistent must be true.
bEnable_LocalTime	BOOL	Activates the local time of the runtime system.
dtDateAndTime	DT	Used if bEnable_LocalTime is false.
bEnable_Return_Visu	BOOL	Enables the "Back" button on the Start page. Target is sReturn_Visu.
sReturn_Visu	STRING	String of the target visualization.
bFireAlarm_NC	BOOL	Input for the integration of a fire alarm system. If the input is False, the illumination is switched on 100% and operation is disabled.
bSwitch_Reset_Trig	BOOL	A positive edge resets all switch/push button inputs.
