FB_BA_RoomAutomationClient

FB_BA_RoomAutomationClient 1:

Call template trade "Room automation" - client version.

This template at the "trade" level calls up all sub-templates whose data is ideally prepared in a floor computer.

On the one hand, this is data to be assigned to the "room automation" trade, which is transmitted and read by a building computer (FB_BA_AdsComClient_Room), and on the other hand, this template contains the calls of all rooms.

FB_BA_RoomAutomationClient 2:

The initialization of the template takes place within the method FB_Init.

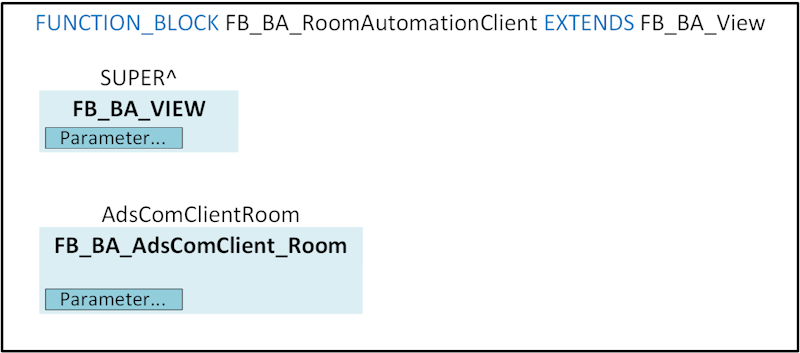

Block diagram

FB_BA_RoomAutomationClient 3:

Syntax

FUNCTION_BLOCK FB_BA_RoomAutomationClient EXTENDS FB_BA_View
VAR_INPUT CONSTANT
  AdsComClientRoom    : FB_BA_AdsComClient_Room;
  SampleRoom          : FB_BA_RoomSample1;
END_VAR

FB_BA_RoomAutomationClient 4: VAR_INPUT CONSTANT

Name

Type

Description

AdsComClientRoom

FB_BA_AdsComClient_Room

The sub-template has the task of reading data and parameters sent from other computers, ideally from the building computer.

SampleRoom

FB_BA_RoomSample1

The sub-template represents an example room with shading, illumination and air conditioning. This room has a shaded area within a facade whose data it receives via site.arrFacade[2]. In terms of lighting, the room is assigned to area 1, which is expressed by the receipt of site.arrAreaLighting[1].

Requirements

Development environment

Necessary function

TwinCAT from v3.1.4024.56

TF8040 | TwinCAT Building Automation from V5.8.0.0
