FB_BA_H_HtgCir_Sp

Template for providing the setpoint for a heating circuit control.

The heating curve HtgCrv calculates the flow temperature setpoint SpTFl according to the outside temperature fWthDamp and the specified setpoints.

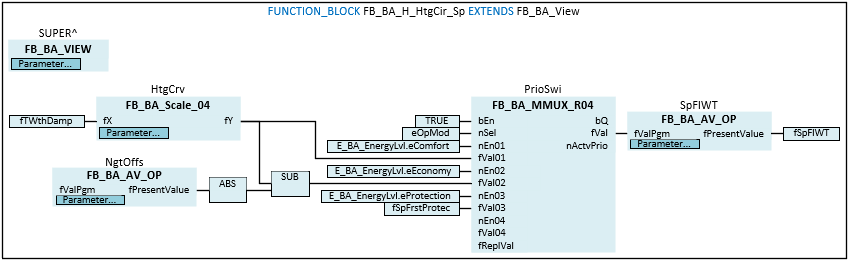

Block diagram

	The initialization of the template takes place within the method FB_Init.

Syntax

FUNCTION_BLOCK FB_BA_H_HtgCir_Sp EXTENDS FB_BA_View
VAR_INPUT
  eOpMod           : E_BA_EnergyLvl;
  fSpFrstProtec    : REAL;
  fTWthDamp        : REAL;
END_VAR
VAR_OUTPUT
  fSpFlWT          : REAL;
END_VAR
VAR_INPUT CONSTANT
  NgtOffs          : FB_BA_AV_Op;
  SpFlWT           : FB_BA_AV_Op;
  HtgCrv           : FB_BA_Scale_04;
END_VAR
VAR
  PrioSwi          : FB_BA_MMUX_R04;
END_VAR

Inputs

Name	Type	Description
eOpMode	E_BA_EnergyLvl	Input of the current operation mode.
fSpFrstProtec	REAL	Frost protection setpoint input for the "Protection" operation mode.
fTWthDamp	REAL	Input of the damped outside temperature.

Outputs

Name	Type	Description
fSpFlWT	REAL	Output of the setpoint for the heating circuit.

Inputs CONSTANT

Name	Type	Description
NgtOffs	FB_BA_AV_Op	AV object for inputting the value for the night setback.
SpFlWT	FB_BA_AV_Op	AV object for displaying the setpoint for the heating circuit.
HtgCrv	FB_BA_Scale_04	Calculation of the heating curve for the heating circuit depending on the damped outside temperature.

Variables

Name	Type	Description
PrioSwi	FB_BA_MMUX_R04	The multiplexer function block outputs the corresponding setpoint depending on the current operation mode eOpMod.
