FB_BA_Button2Way

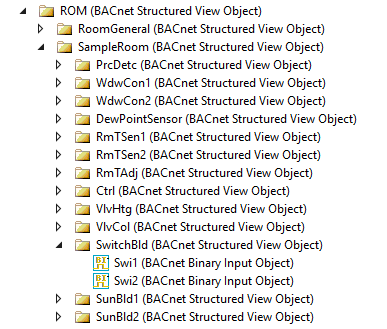

The template is used to directly link the inputs of a dual push button. The states are represented on a hierarchy level with two objects and made available to the project via the outputs bPresentValue1 and bPresentValue2. This template is used, for example, for the integration of blind buttons.

	The initialization of the template takes place within the method FB_Init.

Inheritance hierarchy

FB_BA_Base

FB_BA_BasePublisher

FB_BA_Object

FB_BA_View

Syntax

FUNCTION_BLOCK FB_BA_Button2Way EXTENDS FB_BA_VIEW
VAR_INPUT
END_VAR
VAR_INPUT CONSTANT
  Swi1              : FB_BA_BI_Raw;
  Swi2              : FB_BA_BI_Raw;
END_VAR
VAR_OUTPUT
  bPresentValue1    : BOOL;
  bPresentValue2    : BOOL;
END_VAR

Inputs CONSTANT

Name	Type	Description
Swi1	FB_BA_BI_Raw	Binary input object for switch1.
Swi2	FB_BA_BI_Raw	Binary input object for switch2.

Outputs

Name	Type	Description
bPresentValue1	BOOL	Output: state switch 1.
bPresentValue2	BOOL	Output: state switch 2.

Requirements

Development environment	Necessary function
TwinCAT from v3.1.4024.35	TF8040 \| TwinCAT Building Automation from V5.0.0.0
