HMI
Explanation of the sample project TF8040 Template Samples HMI.
 | For more information on the required steps, refer to the sample documentation in the HMI section. |
Components
The individual sample pages of the project are described below.
| The open live view shows many errors. This is because objects in the PLC signal an error if no physical inputs are connected. |
Systems
Heating circuit
Displays a heating circuit.
Ventilation and air-conditioning technology
Displays a ventilation system.

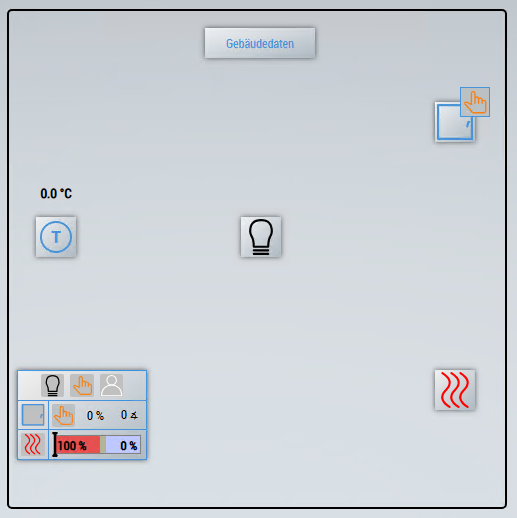

Room
Displays a sample room.
