RecvReserveNow

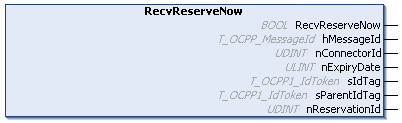

RecvReserveNow 1:

With this method, an OCPP client receives a Reserve Now request from the corresponding OCPP server. To respond to the request, the method RespReserveNow must be called.

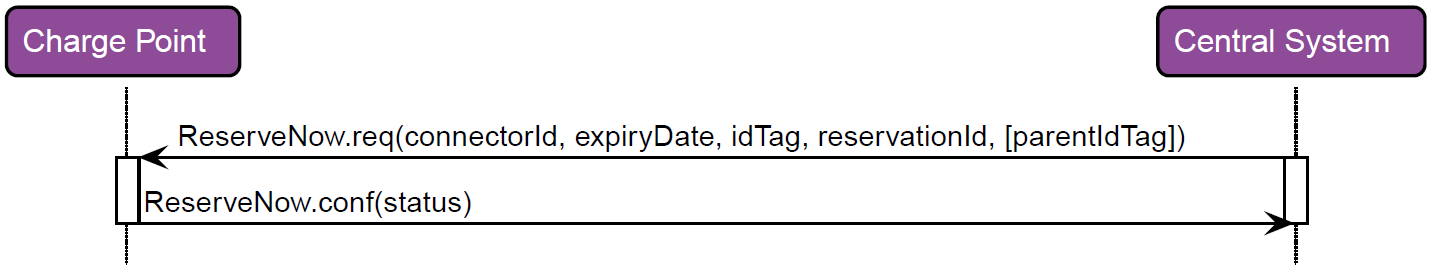

RecvReserveNow 2:

Syntax

METHOD RecvReserveNow : BOOL
VAR_OUTPUT
    hMessageId     : T_OCPP_MessageId;
    nConnectorId   : UDINT;
    nExpiryDate    : ULINT;
    sIdTag         : T_OCPP1_IdToken;
    sParentIdTag   : T_OCPP1_IdToken;
    nReservationId : UDINT;
END_VAR

Return value

Name	Type	Description
RecvReserveNow	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Outputs

Name	Type	Description
hMessageId	T_OCPP_MessageId	MessageId of the received message.
nConnectorId	UDINT	Contains the ID of the Connector to be reserved.
nExpiryDate	ULINT	Date and time at which the reservation ends.
sIdTag	T_OCPP1_IdToken	ID tag for which the Connector is to be reserved.
sParentIdTag	T_OCPP1_IdToken	Optional parent ID tag.
nReservationId	UDINT	Unique ID for the reservation.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
