RespReserveNow

RespReserveNow 1:

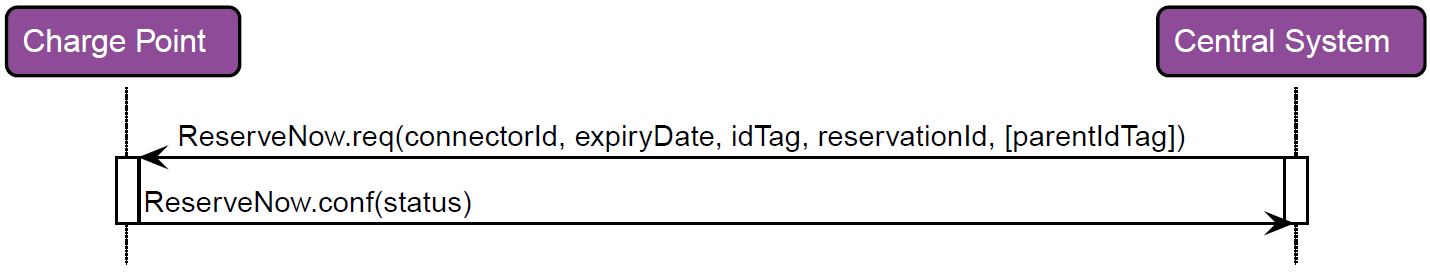

With this method, an OCPP client responds to a Reserve Now request from the corresponding OCPP server.

RespReserveNow 2:

Syntax

METHOD RespReserveNow : BOOL
VAR_INPUT
    hMessageId : T_OCPP_MessageId;
    eStatus    : E_OCPP1_ReservationStatus;
END_VAR

RespReserveNow 3: Return value

Name

Type

Description

RespReserveNow

BOOL

The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

RespReserveNow 4: Inputs

Name

Type

Description

hMessageId

T_OCPP_MessageId

MessageId of the received message.

eStatus

E_OCPP1_ReservationStatus

Response whether the Charge Point has accepted or rejected the requested reservation.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
