RecvGetCompositeSchedule

RecvGetCompositeSchedule 1:

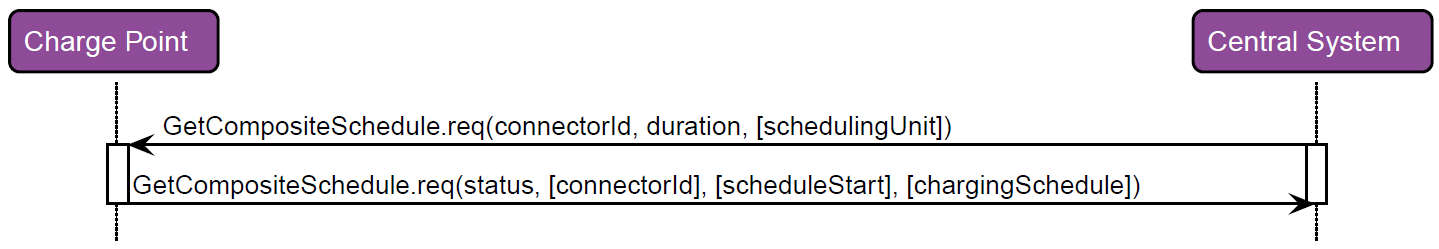

With this method, an OCPP client receives a Get Composite Schedule request from the corresponding OCPP server. To respond to the request, the method RespGetCompositeSchedule must be called.

RecvGetCompositeSchedule 2:

Syntax

METHOD RecvGetCompositeSchedule : BOOL
VAR_OUTPUT
    hMessageId        : T_OCPP_MessageId;
    nConnectorId      : UDINT;
    nDuration         : UDINT;
    eChargingRateUnit : E_OCPP1_ChargingRateUnitType;
END_VAR

Return value

Name	Type	Description
RecvGetCompositeSchedule	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Outputs

Name	Type	Description
hMessageId	T_OCPP_MessageId	MessageId of the received message.
nConnectorId	UDINT	ID of the Connector of a Charge Point.
nDuration	UDINT	Time of the requested schedule in seconds.
eChargingRateUnit	E_OCPP1_ChargingRateUnitType	Can optionally be used to specify the unit of the requested schedule.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
