RespGetCompositeSchedule

RespGetCompositeSchedule 1:

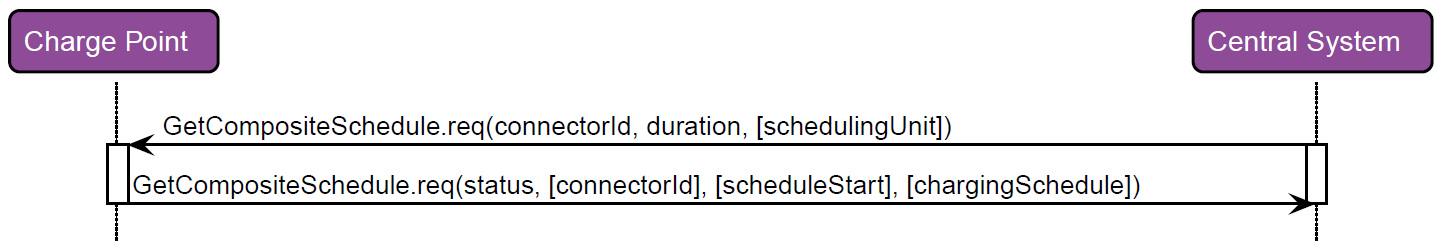

With this method, an OCPP client responds to a Get Composite Schedule request from the corresponding OCPP server.

RespGetCompositeSchedule 2:

Syntax

METHOD RespGetCompositeSchedule : BOOL
VAR_INPUT
    hMessageId        : T_OCPP_MessageId;
    eStatus           : E_OCPP1_GetCompositeScheduleStatus;
    nConnectorId      : UDINT := 0;
    nScheduleStart    : ULINT := 0;
    mChargingSchedule : REFERENCE TO ST_OCPP1_ChargingSchedule REF= 0;
END_VAR

RespGetCompositeSchedule 3: Return value

Name

Type

Description

RespGetCompositeSchedule

BOOL

The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

RespGetCompositeSchedule 4: Inputs

Name

Type

Description

hMessageId

T_OCPP_MessageId

MessageId of the received message.

eStatus

E_OCPP1_GetCompositeScheduleStatus

Response whether the Schedule could be queried on the Charge Point side.

nConnectorId

UDINT

Can optionally contain the ID of a Connector of a Charge Point. The returned Schedule would then apply to this Connector.

nScheduleStart

ULINT

Optionally contains the time, all values contained here are displayed relative to this time.

mChargingSchedule

REFERENCE TO ST_OCPP1_ChargingSchedule

Optionally contains the planned Schedule over time.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
