RecvClearChargingProfile

RecvClearChargingProfile 1:

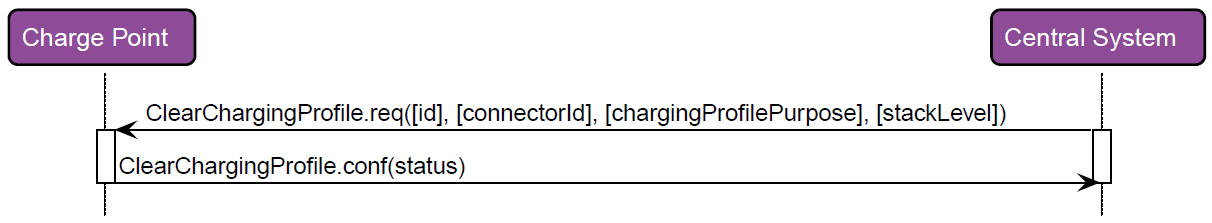

With this method, an OCPP client receives a Clear Charging Profile request from the corresponding OCPP server. To respond to the request, the method RespClearChargingProfile must be called.

RecvClearChargingProfile 2:

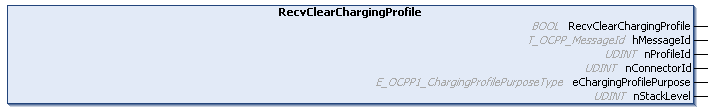

Syntax

METHOD RecvClearChargingProfile : BOOL
VAR_OUTPUT
    hMessageId              : T_OCPP_MessageId;
    nProfileId              : UDINT;
    nConnectorId            : UDINT;
    eChargingProfilePurpose : E_OCPP1_ChargingProfilePurposeType;
    nStackLevel             : UDINT;
END_VAR

Return value

Name	Type	Description
RecvClearChargingProfile	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Outputs

Name	Type	Description
hMessageId	T_OCPP_MessageId	MessageId of the received message.
nProfileId	UDINT	ID of the Charging Profile to be deleted.
nConnectorId	UDINT	ID of the Connector of a Charge Point for which the Charging Profiles are to be deleted.
eChargingProfilePurpose	E_OCPP1_ChargingProfilePurposeType	Specifies the ChargingProfilePurposeType whose Charging Profiles are to be deleted.
nStackLevel	UDINT	Specifies the Stack Level for which Charging Profiles are to be deleted if all other criteria in the request are met.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
