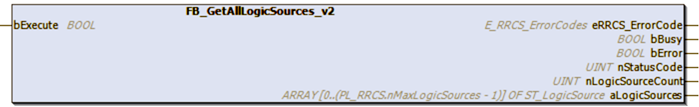

FB_GetAllLogicSources_V2

This function block queries the 'Logic sources' defined in the Artist device.

Inputs

VAR_INPUT
    bExecute : BOOL;
END_VAR

Name	Type	Description
bExecute	BOOL	The function block is enabled by a positive edge at this input.

Outputs

VAR_OUTPUT
    eRRCS_ErrorCode   : E_RRCS_ErrorCodes
    bBusy             : BOOL;
    bError            : BOOL;
    nStatusCode       : UINT;
    nLogicSourceCount : UINT
    aLogicSources     : ARRAY[ ] OF ST_LogicSource
END_VAR

Name	Type	Description
eRRCS_ErrorCode	E_RRCS_ErrorCodes	Error code received from RRCS_Servers.
bBusy	BOOL	Is TRUE as long as the function block is busy with the query and no error occurs.
bError	BOOL	Is TRUE if an error occurred during the query.
nStatusCode	UINT	Servers deliver the status code as a response to every HTTP request. The server uses this code to inform the client whether the request was successful. Normally 200 (OK) is returned. Detailed information on this: developer.mozilla.org/en/docs/Web/HTTP/Reference/Status
nLogicSourceCount	UINT	The number of 'Logic Sources' defined in the Artist device.
aLogicSources	ARRAY[ ] OF ST_LogicSource	Listing of all defined 'Log Sources' in the form of an array. The maximum number of array entries is defined in the parameter list.

FB_GetAllLogicSources_V2 has an extended FB_init method in which an instance of FB_RRCScom must be referenced using a pointer:

VAR
fbGetAllLogicSources_V2: FB_GetAllLogicSources_V2(pfbRRCscom := ADR(fbRRCScom));
END_VAR
