FB_GseGoCBImplClass

The function block FB_GseGoCBImplClass contains the implementation of the properties of a GOOSE control block as well as the functions for Publisher and Subscriber. For each configured GOOSE control block an instance of FB_GseGoCBImplClass is created by the TwinCAT Telecontrol Configurator. For more information on code generation for GOOSE, see Automatic code generation.

Namespace: Tc3_Gse
Library: Tc3_Gse (Tc3_Gse.compiled-library)

Inheritance hierarchy

FB_AcsiCommonNodeClass -> FB_AcsiCommonDataClass -> FB_AcsiCommonControlBlockClass -> FB_AcsiCommonGooseControlBlockClass -> FB_AcsiGooseControlBlock -> FB_ScsmGoCBImplClass -> FB_GseGoCBImplClass

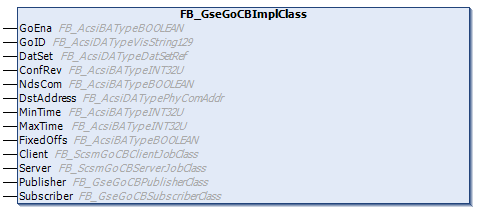

FUNCTION_BLOCK FB_GseGoCBImplClass EXTENDS FB_ScsmGoCBImplClass IMPLEMENTS I_GseGoCBImplClass
VAR_INPUT
    Publisher  : FB_GseGoCBPublisherClass;
    Subscriber : FB_GseGoCBSubscriberClass;
END_VAR

Interfaces

Type	Description
I_GseGoCBImplClass	Interface of the GOOSE control block implementation.

Inputs

Name	Type	Definition location	Description
Publisher	FB_GseGoCBPublisherClass	Local	Publisher implementation of the GOOSE control block.
Subscriber	FB_GseGoCBSubscriberClass	Local	Subscriber implementation of the GOOSE control block.
Client	FB_ScsmGoCBClientJobClass	Inherited from FB_ScsmGoCBImplClass	Client implementation of the GOOSE control block.
Server	FB_ScsmGoCBServerJobClass	-//-	Server implementation of the GOOSE control block.
GoEna	FB_AcsiBATypeBOOLEAN	Inherited from FB_AcsiGooseControlBlock	Data attribute
GoID	FB_AcsiDATypeVisString129	-//-	Data attribute
DatSet	FB_AcsiDATypeDatSetRef	-//-	Data attribute
ConfRev	FB_AcsiBATypeINT32U	-//-	Data attribute
NdsCom	FB_AcsiBATypeBOOLEAN	-//-	Data attribute
DstAddress	FB_AcsiDATypePhyComAddr	-//-	Data attribute
MinTime	FB_AcsiBATypeINT32U	-//-	Data attribute
MaxTime	FB_AcsiBATypeINT32U	-//-	Data attribute
FixedOffs	FB_AcsiBATypeBOOLEAN	-//-	Data attribute

Example

For more information on how to use the GOOSE control block, see: Client - GOOSE Subscriber (without Client-Server communication) and Server - GOOSE Publisher (without Client-Server communication).
