FB_ScsmGoCBImplClass

The function block FB_ScsmGoCBImplClass contains the client and server implementation of the properties and functions of a GOOSE control block.

Namespace: Tc3_iec61850_8_1
Library: Tc3_iec61850_8_1 (Tc3_iec61850_8_1.compiled-library)

Inheritance hierarchy

FB_AcsiCommonNodeClass -> FB_AcsiCommonDataClass -> FB_AcsiCommonControlBlockClass -> FB_AcsiCommonGooseControlBlockClass -> FB_AcsiGooseControlBlock -> FB_ScsmGoCBImplClass

FUNCTION_BLOCK FB_ScsmGoCBImplClass EXTENDS FB_AcsiGooseControlBlock IMPLEMENTS I_ScsmGoCBImplClass

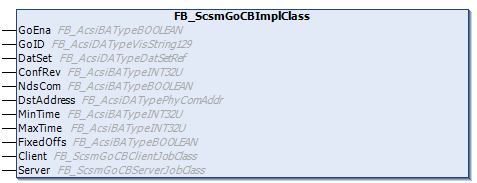

VAR_INPUT
    Client : FB_ScsmGoCBClientJobClass;
    Server : FB_ScsmGoCBServerJobClass;
END_VAR

Interfaces

Type	Description
I_ScsmGoCBImplClass	Interface of the GOOSE control block implementation.

Inputs

Name	Type	Definition location	Description
Client	FB_ScsmGoCBClientJobClass	Local	Client implementation of the GOOSE control block.
Server	FB_ScsmGoCBServerJobClass	Local	Server implementation of the GOOSE control block.
GoEna	FB_AcsiBATypeBOOLEAN	Inherited from FB_AcsiGooseControlBlock	Data attribute
GoID	FB_AcsiDATypeVisString129	-//-	Data attribute
DatSet	FB_AcsiDATypeDatSetRef	-//-	Data attribute
ConfRev	FB_AcsiBATypeINT32U	-//-	Data attribute
NdsCom	FB_AcsiBATypeBOOLEAN	-//-	Data attribute
DstAddress	FB_AcsiDATypePhyComAddr	-//-	Data attribute
MinTime	FB_AcsiBATypeINT32U	-//-	Data attribute
MaxTime	FB_AcsiBATypeINT32U	-//-	Data attribute
FixedOffs	FB_AcsiBATypeBOOLEAN	-//-	Data attribute

Properties

Name	Type	Access	Definition location	Description
bFixedOffs	BOOL	Get	I_ScsmGoCBImplClass	Attribute value: Enables/disables coding with fixed lengths.
bGoEna	BOOL	Get, Set	-//-	Attribute value: Enables/disables the GOOSE control block.
bNdsCom	BOOL	Get	-//-	Attribute value: Indicates whether the GOOSE control block requires further configuration.
ePRIORITY	E_AcsiVLanPriority	Get	-//-	Priority level in the VLAN network.
ipDatSet	I_AcsiCommonDataSetClass	Get	-//-	Interface pointer to the linked data set.
macAddr	ETHERNET_ADDRESS	Get	-//-	Target MAC address.
nAPPID	WORD	Get	-//-	Application Identifier.
nConfRev	UDINT	Get	-//-	Revision number of the configuration of the GOOSE control block.
nMaxTime	DWORD	Get	-//-	Maximum time between repeated transmissions of a GOOSE message in milliseconds.
nMinTime	DWORD	Get	-//-	Time between direct sending after data change and first repetition in milliseconds.
nVID	WORD(0..4095)	Get	-//-	ID of the VLAN network.
oAddr	T_OCTET6	Get	-//-	Target MAC address.
sAddr	STRING(17)	Get	-//-	Target MAC address.
sDatSet	T_AcsiObjectReference	Get, Set	-//-	Name of the linked data set.
sGoID	T_AcsiVisString129	Get, Set	-//-	The ID of the GOOSE messages.
ipClient	I_ScsmGoCBClientJobClass	Get	-//-	Interface pointer of the client implementation of the GOCB control block.
ipServer	I_ScsmGoCBServerJobClass	Get	-//-	Interface pointer of the server implementation of the GOCB control block.
