Upload

Starts an upload operation.

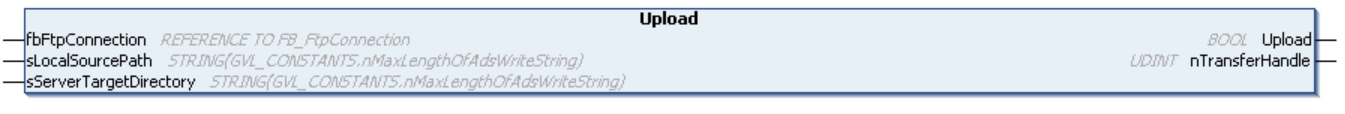

Syntax

METHOD Upload : BOOL
VAR_INPUT
    fbFtpConnection        : REFERENCE TO FB_FtpConnection;
    sLocalSourcePath       : STRING;
    sServerTargetDirectory : STRING;
END_VAR

Return value

Name	Type	Description
Upload	BOOL	Returns TRUE when the method has completed. Whether the action was successful can be read from the bError variable of the function block.
nTransferHandle	UDINT	Handle for the transfer operation.

Inputs

Name	Type	Description
fbFtpConnection	FB_FtpConnection	References the server connection to be used for the operation.
sLocalSourcePath	STRING	Path to the local source. Can be a file path or a directory path. Supports wildcards. Example: "C:\Temp\*" uploads everything in the Temp folder.
sServerTargetDirectory	STRING	Path to the target directory on the server.
