FB_FtpConnection

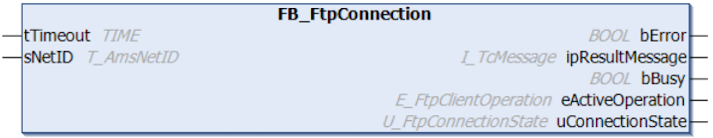

FB_FtpConnection 1:

This function block can be used to manage a connection to an FTP/SFTP server. Different methods allow you to create a profile, connect to the server, and disconnect from the server.

FB_FtpConnection 2: Inputs

VAR_INPUT
    tTimeout : TIME;
    sNetID   : T_AmsNetID;
END_VAR

Name

Type

Description

tTimeout

TIME

Indicates the ADS timeout to be used between PLC runtime and the FTP client user mode process (in seconds).

sNetID

T_AmsNetID

AmsNetID of the device on which the FTP client user mode process is running. Normally, the FTP client and the PLC run on the same system, so no value needs to be assigned to this variable.

FB_FtpConnection 3: Outputs

VAR_OUTPUT
    bError           : BOOL;
    ipResultMessage  : I_TcMessage;
    bBusy            : BOOL;
    eActiveOperation : E_FtpClientOperation;
    uConnectionState : U_FtpConnectionState;
END_VAR

Name

Type

Description

bError

BOOL

TRUE if an error has occurred.

ipResultMessage

I_TcMessage

Output with extended error and diagnostic information based on the TwinCAT 3 EventLogger.

bBusy

BOOL

TRUE as soon as the function block is in use.

eActiveOperation

E_FtpClientOperation

Indicates the current operation.

uConnectionState

U_FtpConnectionState

Indicates the current connection state. Will be updated automatically.

FB_FtpConnection 4: Properties

Name

Type

Access

Description

nIdentifier

UDINT

Get

Indicates the ID of the connection that was assigned during initialization.

FB_FtpConnection 5: Methods

Name

Description

AddProfile

Allows you to add a new connection profile.

Connect

Starts the connection establishment to a server.

Disconnect

Disconnects from a server.

Requirements

Development environment

Target platform

PLC libraries to include

TwinCAT v3.1 Build 4026

PC or CX (x86)

Tc3_FTP
