Set the pressure sensors

An MC3 FluidPower axis has been created;
see Adding an axis.

1. Double-click the Pressure Sensor A/B object.

2. Open the Init Parameter tab.

3. Set the parameters:
e.g., pressure sensor pA, 400 bar / 32,767-increment analog module.

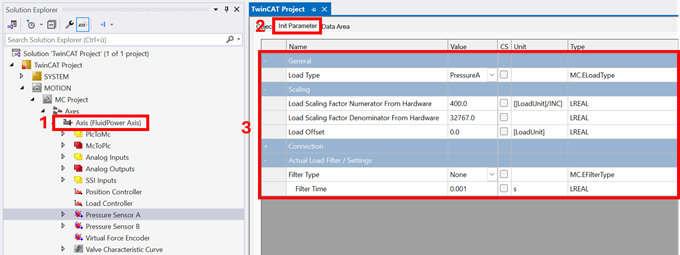

Set the pressure sensors 1:

Explanations of the parameters can be found here: Init Parameter

4. Activate the TwinCAT project.
→ Configure the Load Offset to zero the sensor when the hydraulic system is depressurized.

Once parameterization is complete, move the axis in manual operation to check the direction of rotation;
see Move the axis in manual operation using Motion UI.
