Settings tab

In the Settings tab, you can configure key settings for the encoder axis.

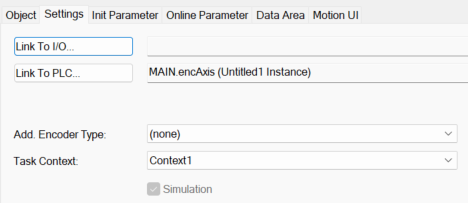

Settings tab 1:

Property

Description

Link to I/O…

The Link button opens a dialog box for linking the MC encoder axis to the drive hardware under the I/O node.

The linked item is displayed in the field to the right of it.

Link to PLC…

The Link button opens a dialog for linking the MC encoder axis to a PLC instance of ENCODER_AXIS_REF.

The linked item is displayed in the field to the right of it.

Add. Encoder Type

Select the Encoder Type to be used here. Details about the encoders can be found at Encoder modules. The value is usually determined automatically when linking to a hardware element (Link to I/O).

Task Context

Each encoder axis must be assigned to a task context. If a MC Project has more than one context, you can use the combo box to change the axis's context.

New contexts are created and configured using the MC project's Context tab.

Simulation

Settings tab 2:

Settings tab 3:

When simulation mode is active, the link to the I/O is ignored. Instead of the configured Encoder Type, you must select the data source for the simulation under Init Parameter > General > Simulation Data Source.

Settings tab 4:

If Encoder Type (none) is selected, the axis is always a simulation encoder axis, and the setting cannot be changed.

Settings tab 5:

Settings tab 6:

The configured Encoder Type and link to the I/O are used.
