Integrating online tool radius compensation object

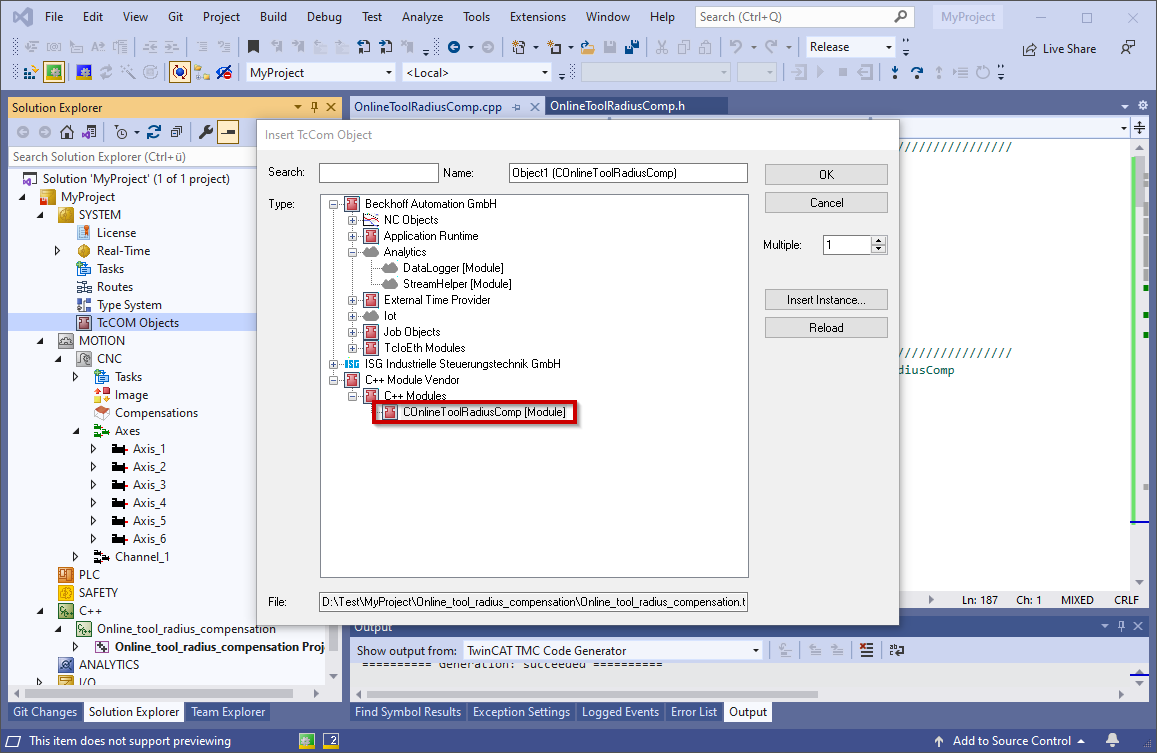

The created online tool radius compensation object must be integrated into the existing CNC configuration as follows:

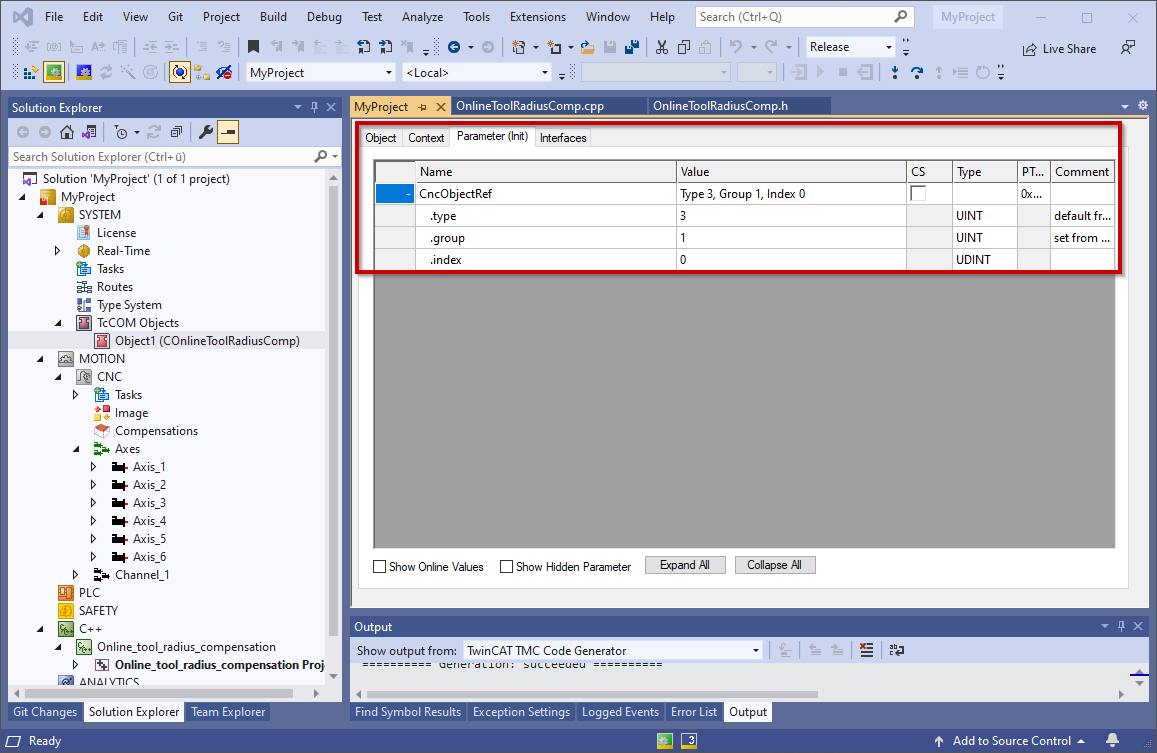

The type for the online tool radius compensation object is 3.

The channel specification is dependent on whether instance-specific variables are used in the TcCOM object.

• With instance-specific data, the group corresponds to channel number [1;12].
• With no instance-specific data, assign the group the value 0.

The index of each object is not used.

The TcCOM object must be digitally signed, otherwise it is not loaded. For more information on TcCOM objects and how to digitally sign an object, go to Beckhoff Information System.

Only one online tool radius compensation object can be used for each channel.
