MC_DigitalCamSwitch
The function block MC_DigitalCamSwitch is a digital cam controller with one or several cams on a digital output track.
Position, time and brake cams can be realized through suitable parameterization. Further output tracks can be realized with independent instances of the function block.
In addition to the switching state of the digital output the output data structure contains precise time information for the next switching operations. This information is used for the actual output at an XFC output terminal with a downstream function block (XFC_EL2252_V2 or XFC_EL2262).
Inputs
VAR_INPUT
Enable : BOOL;
Options : ST_CamSwitchOptions;
END_VAR
Name | Type | Description |
---|---|---|
Enable | BOOL | The cam controller is activated via the Enable input. The initial state remains unchanged, as long as Enable=FALSE. |
Options | Optional parameter |
/ Inputs/Outputs
VAR_IN_OUT
Axis : AXIS_REF;
Switches : CAMSWITCH_REF;
Output : OUTPUT_REF;
TrackOptions : TRACK_REF;
END_VAR
Name | Type | Description |
---|---|---|
Axis | The axis data structure of type AXIS_REF addresses an axis unambiguously within the system. Among other parameters, it contains the current axis status, including position, velocity or error state. | |
Switches | The data structure Switches contains a reference to the parameterization of all cams on the cam track. | |
Output | The data structure Output contains the calculated state of the digital output and the associated timestamp for the output at a digital XFC output terminal. | |
TrackOptions | The data structure TrackOptions contains the parameterization for the cam track. |
Outputs
VAR_OUTPUT
InOperation : BOOL;
Busy : BOOL;
Error : BOOL;
ErrorID : UDINT;
END_VAR
Name | Type | Description |
---|---|---|
InOperation | BOOL | InOperation is TRUE, as long as the cam controller is active and the cam track is calculated according to the cam parameterization. |
Busy | BOOL | Busy is TRUE as long as the function block has not been completed. |
Error | BOOL | Becomes TRUE if an error occurs. |
ErrorID | UDINT | If the error output is set, this parameter supplies the Overview of NC Errors. |
Example for two digital cam tracks
The following switching diagrams result from the cam data. The switching sequence is represented without any time compensation and hysteresis and varies for both directions of travel due to the cam data.

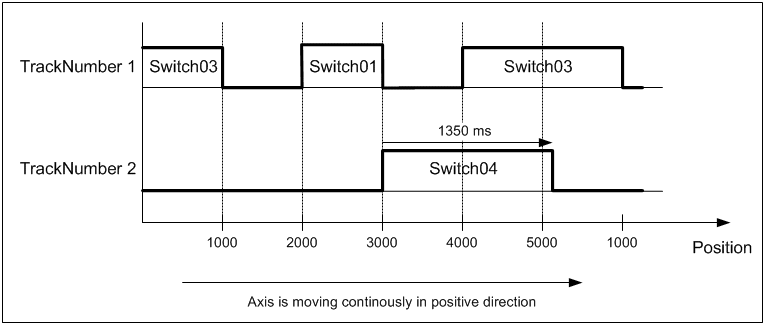

Switching sequence for positive direction of travel

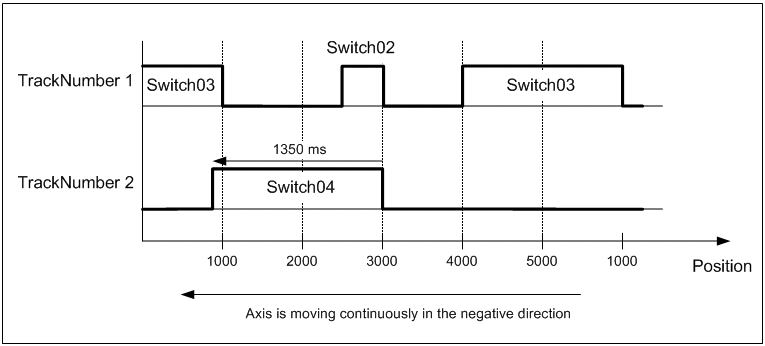

Switching sequence for negative direction of travel
