Additional Configurations

The Stores and Data Message Broker of the Storage Provider Services are set under Additional Configurations.

ADDITIONAL CONFIGURATIONS

Storages

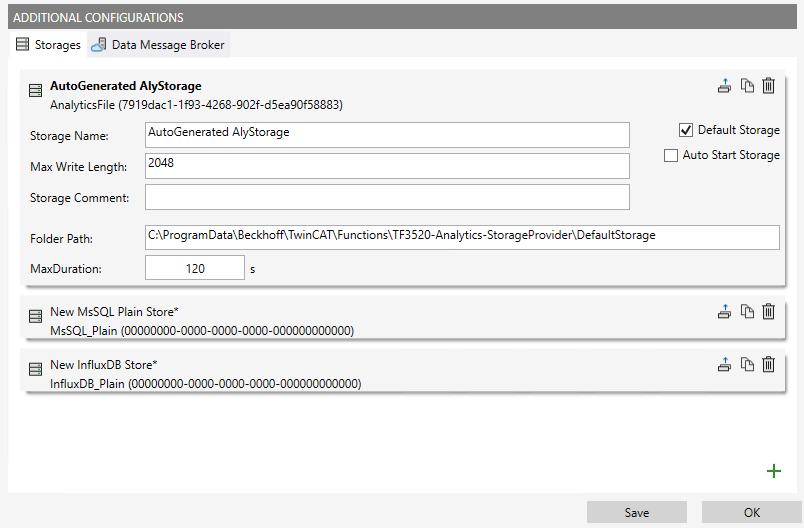

The stores that are available to the Analytics Storage Provider Service can be created in the Storages tab. These can be of various types, such as Microsoft SQL® or csv files. New stores can be added in binary or plain text format using the plus sign in the bottom right-hand corner. The configuration of the individual stores is described in this sub-chapter.

Additional Configurations 1:

Data Message Broker

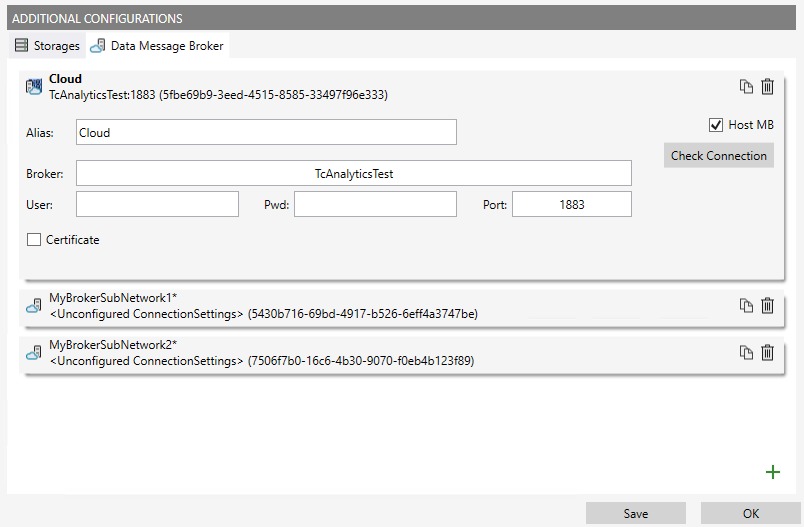

1. In the Data Message Broker tab, you can create the message brokers that can provide input data for the Storage Provider in addition to the Host Message Broker.
Additional Configurations 2:

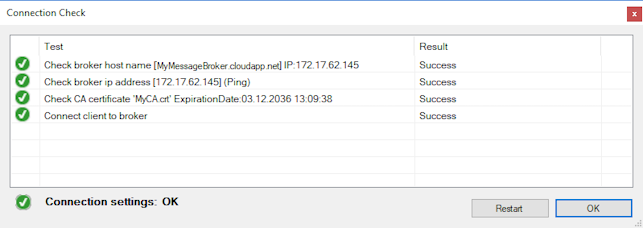

2. The settings can be checked using the Check Connection button.
The result is displayed in the following window:
Additional Configurations 3:

If you click on Save, the settings are saved in the directory C:\TwinCAT\Functions\TF3520-Analytics-StorageProvider\Configurations.
