TcHmiUserGuidance

The User Guidance control enables the user to be guided through tasks/instructions step by step. Examples of applications are the creation of a recipe, troubleshooting on the machine or instructions for the maintenance of components. It is possible to integrate content or UserControls in the User Guidance Control. These are created as an array and run through according to their sequence in the control. Individual steps can be provided with a switching condition. This is only possible in combination with a UserControl.

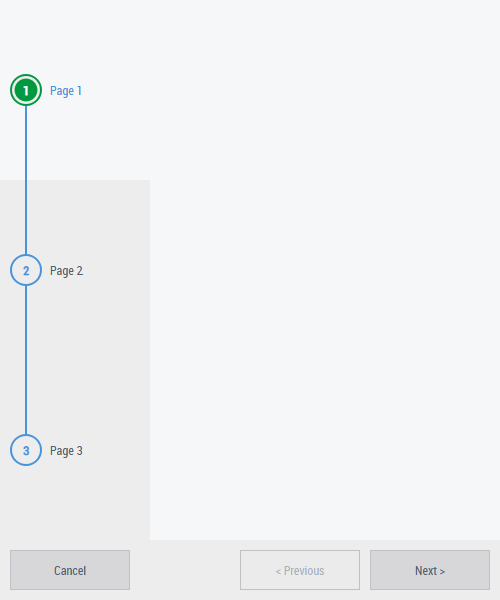

TcHmiUserGuidance 1:

Server extensions

-

Inheritance hierarchy

TcHmiControl > TcHmiUserGuidance

NuGet package: Beckhoff.TwinCAT.HMI.Controls

TcHmiUserGuidance 2:

NuGet packages are available from version 1.12.

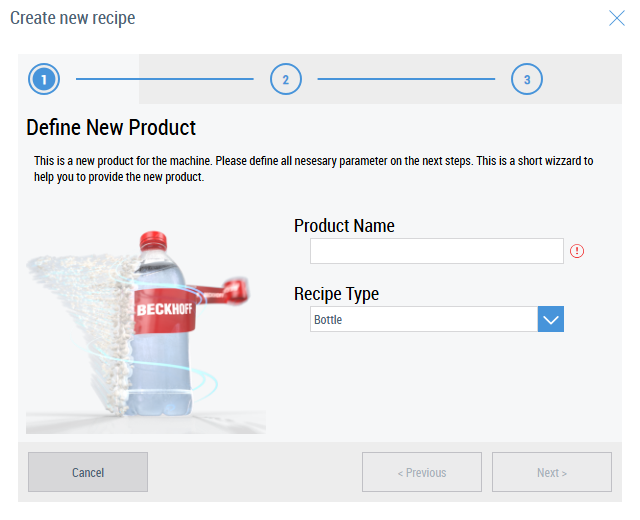

TcHmiUserGuidance 3:

The control is included in the NuGet package Beckhoff.TwinCAT.HMI.Controls >= 14.3. The package can be installed via TcPkg (TwinCAT.HMI.Controls) or nuget.org.
