Beckhoff Write Int By Name

Beckhoff Write Int By Name 1:

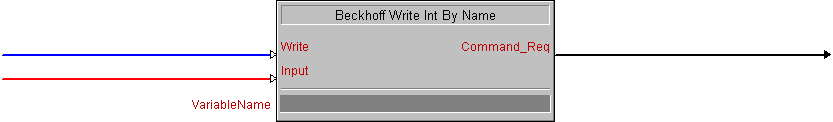

Beckhoff_Write_Int_by_Name_Symbol

This block writes the value of the 16-bit variable that is present at the Input to a TwinCAT PLC.

Inputs

Write  :  DIGITAL;
Input  :  ANALOG;

Write: The write command is activated by a positive edge at this input.

Input: This value will be transferred.

Outputs

Command_Req  :  SERIAL;

Command_Req: This signal is connected to the Command_Res input of the Beckhoff Communication or Beckhoff Communication 400 lock. It is used for transferring commands.

Parameters

VariableName  :  SERIAL;

VariableName: Specifies the name of the variable to be described in the TwinCAT PLC.

Development environment

Target platform

MP2E V4.001.1012(Feb 17 2009) Build 7

2 -Series with network interface
