Beckhoff Write Bit

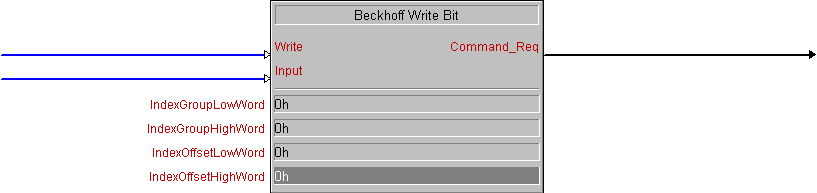

Beckhoff Write Bit 1:

This block writes the value of the Boolean variable that is present at the Input to the TwinCAT PLC.

Inputs

Command_Res  :  SERIAL;
Write        :  DIGITAL;
Input        :  DIGITAL;

Write: The write command is activated by a positive edge at this input.

Input: This value will be transferred.

Outputs

Command_Req  :  SERIAL;

Command_Req: This signal is connected to the Command_Req input of the Beckhoff Communication or Beckhoff Communication 400 block. It is used for transferring commands.

Parameters

IndexGroupLowWord    :  ANALOG;
IndexGroupHighWord   :  ANALOG;
IndexOffsetLowWord   :  ANALOG;
IndexOffsetHighWord  :  ANALOG;

IndexGroupLowWord: The low-order word of the Index Group.

IndexGroupHighWord: The high-order word of the Index Group.

IndexOffsetLowWord: The low-order word of the Index Offset.

IndexOffsetHighWord: The high-order word of the Index Offset.

Development environment

Target platform

MP2E V4.001.1012(Feb 17 2009) Build 7

2 -Series with network interface
