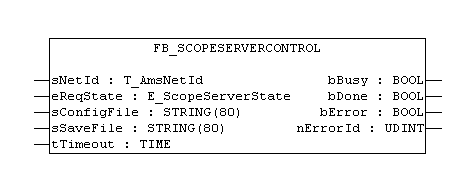

FB_ScopeServerControl

 VAR_INPUT

VAR_INPUT
   sNetId:      T_AmsNetId;
   eReqState:   E_ScopeServerState := SCOPE_SERVER_IDLE;
   sConfigFile: STRING;
   sSaveFile:   STRING;
   tTimeout:    TIME := DEFAULT_ADS_TIMEOUT;
ND_VAR

sNetId:Here a string containing the network address  of the target TwinCAT Computer can be given. The string can also be empty for the local computer.

eReqState:: Requested Scope Server state.

sConfigFile:: The full path with the name of the configuration file (e.g.: 'C:\TwinCAT\TwinCATScopeView2\First.sv2' ).

sSaveFile: The full path with the name of the data file (e.g.: 'C:\TwinCAT\TwinCATScopeView2\First.svd').

tTimeout:: Maximum time allowed for the internal ADS commands

VAR_OUTPUT

VAR_OUTPUT
    bBusy     : BOOL;
    bDone     : BOOL
    bError    : BOOL;
    nErrorId  : UDINT;
END_VAR

bBusy: if the function block is activated, this output is set. It remains set until a feedback is received.

bDone: is set if the requested status was activated.

bError: if an ADS error should occur during the transmission of the command, this output is set after the bBusy output has been reset.

nErrorId: shows the error number if the error output is set. As a rule this can be an ADS error number or a specific error code of this library.

Only one target system is permitted for the configuration file (*.sv2).

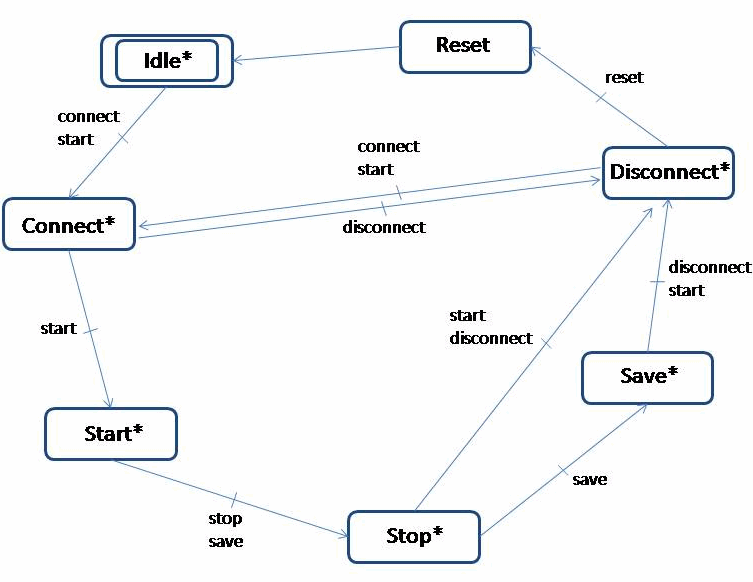

Status diagram:

*) resetting a state change is possible at any time

This status diagram shows the possible transitions for eReqState. If another state transition is requested, bError is set.

TYPE E_ScopeServerState

E_ScopeServerState

TYPE E_ScopeServerState
(
   SCOPE_SERVER_IDLE,
   SCOPE_SERVER_CONNECT,
   SCOPE_SERVER_START,
   SCOPE_SERVER_STOP,
   SCOPE_SERVER_SAVE,
   SCOPE_SERVER_DISCONNECT,
   SCOPE_SERVER_RESET
);

Example in ST:

Declaration part:

FUNCTION_BLOCK FB_ScopeServerSample
VAR_INPUT
   bExternalTriggerEvent: BOOL := FALSE;
END_VAR

VAR_OUTPUT
END_VAR

VAR
   fbScopeServerControl: FB_ScopeServerControl;
   eReqState: E_ScopeServerState := SCOPE_SERVER_IDLE;

   bBusy: BOOL := FALSE;
   bDone: BOOL := FALSE;
   bError: BOOL := FALSE;
   nErrorId: UDINT := 0;
   fbTimer: TON;
   bTriggerTimer: BOOL := FALSE;
   nState: UDINT := 0;
END_VAR

Implementation of FB_ScopeServerSample

CASE nState OF
0:

   eReqState := SCOPE_SERVER_START;
   nState := 10;

10:
   IF fbScopeServerControl.bDone AND bExternalTriggerEvent THEN
      bTriggerTimer := TRUE;
      nState := 20;
   END_IF

20:
   IF fbTimer.Q THEN
      eReqState := SCOPE_SERVER_SAVE;
      bTriggerTimer := FALSE;
      nState := 30;
   END_IF

30:
   IF fbScopeServerControl.bDone THEN
      eReqState := SCOPE_SERVER_DISCONNECT;
   END_IF
END_CASE


fbTimer(IN:=bTriggerTimer, PT:=t#10s);
fbScopeServerControl(
   sNetId:= '',
   eReqState:= eReqState,
   sConfigFile:= 'C:\twinCat\scope\test.sv2',
   sSaveFile:= 'C:\twinCat\scope\test.svd',
   tTimeout:= t#5s,
   bBusy=>bBusy,
   bDone=>bDone,
   bError=>bError,
   nErrorId=>nErrorId);

This sample should show, how a long-term data logging with the Scope Server could be handled.

Therefore an existing configuration (Test.sv2) is loaded. In this sample Test.sv2 was saved to run in Ring Buffer. So, data logging will not stopped until it is triggered by FB_ScopeServerControl. If there is an external trigger event (that could be an error event), a timer is started and  10 seconds later the data is saved in Test.svd. On that way the data file holds an information about what happens before and after the trigger event.
