ADSWRTCTL

VAR_INPUT

VAR_INPUT
    NETID       : T_AmsNetId;
    PORT        : T_AmsPort;
    ADSSTATE    : UINT;
    DEVSTATE    : UINT;
    LEN         : UDINT;
    SRCADDR     : DWORD;
    WRITE       : BOOL;
    TMOUT       : TIME;
END_VAR

NETID : Is a string containing the AMS network identifier of the target device to which the ADS command is directed.

PORT : Contains the port number of the ADS device.

ADSSTATE : Contains the state identification code of the ADS target device. The codes shown here are specified for all ADS servers:

• ADSSTATE_IDLE =1 ;
• ADSSTATE_RESET =2 ;
• ADSSTATE_INIT =3 ;
• ADSSTATE_START =4 ;
• ADSSTATE_RUN=5 ;
• ADSSTATE_STOP =6 ;
• ADSSTATE_SAVECFG =7 ;
• ADSSTATE_LOADCFG =8;

DEVSTATE : Contains the specific state identification code of the ADS target device. The codes given here are supplementary information which is specific to the ADS device.

LEN : Contains the number, in bytes, of the data that is to be written.

SRCADDR : Contains the address of the buffer from which the data to be written is to be fetched. The programmer is himself responsible for dimensioning the buffer to such a size that ‘LEN’ bytes can be taken from it. The buffer can be a single variable, an array or a structure, whose address can be found with the ADR operator.

WRITE : The ADS command is triggered by a rising edge at this input.

TMOUT : States the time before the function is cancelled.

VAR_OUTPUT

VAR_OUTPUT
    BUSY        : BOOL;
    ERR         : BOOL;
    ERRID       : UDINT;
END_VAR

BUSY : This output remains TRUE until the block has executed a command, but at the longest for the duration supplied to the ‘Timeout’ input. While Busy = TRUE, no new command will be accepted at the inputs. Please note that it is not the execution of the service but its acceptance whose time is monitored.

ERR : This output is switched to TRUE if an error occurs during the execution of a command. The command-specific error code is contained in ‘ErrorId’. If the block has a timeout error, ‘Error’ is TRUE and ‘ErrorId’ is 1861 (hexadecimal 0x745). Is reset to FALSE by the execution of a command at the inputs.

ERRID : Contains the command-specific error code of the most recently executed command. Is reset to 0 by the execution of a command at the inputs.

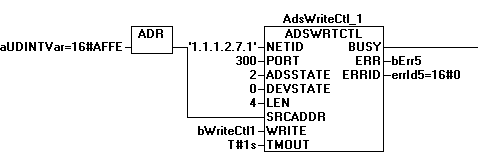

Example of calling the block in FBD:

In the example a reset command (ADSSTATE=2) is sent to the I/O server (Port300), along with supplementary data hex.AFFE. As a result the I/O server executes a bus reset.
